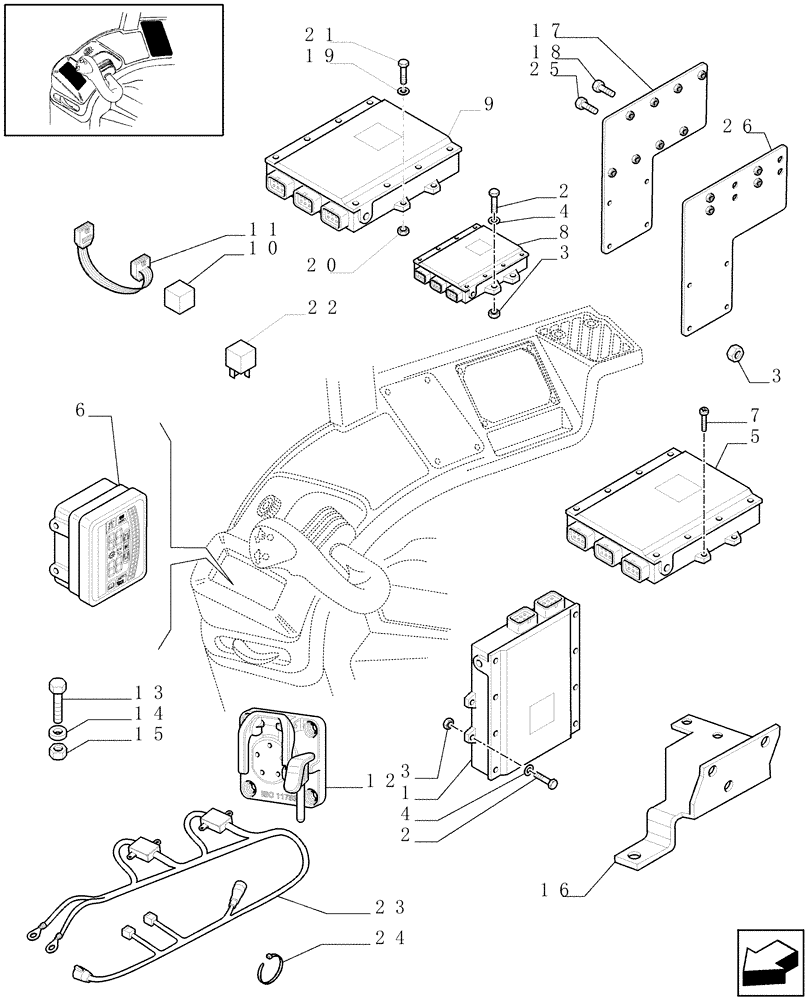

Запчасти Case IH PUMA 195 (1.97.2[01A]) - ELECTRONIC CONTROL UNIT - TRANSMISSION CONTROL MODULE - D6084 (10) - OPERATORS PLATFORM/CAB

1

87524104

MODULE

40/50 KPH, 4WD

1шт.

1

84225110R

REMAN-MODULE

Puma 165, Puma 180, Puma 195, Puma 210, All BSN D6084, Reman For New P/N's 87524103, 87524104, 87524105, 87524106, 87524107, 84225110,

1шт.

1

84225110C

CORE-MODULE

Return Number

1шт.

1

84225110

MODULE

1шт.

1

84225110R

REMAN-MODULE

Puma 165, Puma 180, Puma 195, Puma 210, All BSN D6084, Reman For New P/N's 87524103, 87524104, 87524105, 87524106, 87524107,

1шт.

1

84225110C

CORE-MODULE

Return Number

1шт.

1

84225111

MODULE

1шт.

W/Equip. 571, 19 x 6 40 Kph FPS W/Clutchless power shuttle & autoshift

1шт.

1

84225111R

REMAN ELECT CONTROL

PUMA 165, PUMA 180, PUMA 195, PUMA 210, All (1/07-)

1шт.

1

84225111C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

84225112

MODULE

1шт.

W/STD and W/Equip. 281, 17 x 6 30 Kph FPS W/Clutchless power shuttle & autoshift

1шт.

2

83964105

SCREW,Pan HD, M5 x 16mm

1шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

1шт.

4

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

1шт.

5

47130674

ECU

40 KPH 2WD

1шт.

5

47130674R

REMAN ELECT CONTROL

Reman for New P/N 47130674

1шт.

5

47130674C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

87569995

DISPLAY

, Serial Range: -C6634

1шт.

With Headland Turn System

1шт.

6

84274453

DISPLAY

, Start Serial: D6634

1шт.

With Headland Turn System

1шт.

7

15643901

SELF-TAP SCREW,Pan Hd, M8 x 9.50mm

3шт.

8

84225113

MODULE

1шт.

W/Equip. 570, 17 x 6 30 Kph FPS W/Clutchless power shuttle & autoshift (optional features)

1шт.

9

87524032

MODULE

1шт.

W/Equip. 345, advanced processor for front HPL, front suspension, EHR's

1шт.

10

82038683

ELEC. TERMINAL PIN

ELEC CONNECTOR

1шт.

W/Equip. 613, virtual terminal (SWCD) mounted on implement bracket

1шт.

11

87638191

WIRE HARNESS

1шт.

W/Equip. 613, virtual terminal (SWCD) mounted on implement bracket

1шт.

12

87522416

ELEC CONNECTOR,Female, 5 Cavities

1шт.

W/Equip. 613, virtual terminal (SWCD) mounted on implement bracket

1шт.

13

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

5шт.

14

10571579

LOCK WASHER,M6

5шт.

15

15896211

NUT,M6, Cl 8

5шт.

16

87606848

SUPPORT

For Rear ISOBUS Connector Less Air Brakes

1шт.

17

87594470

SUPPORT

, Serial Range: -C6725

1шт.

W/Equip. 613, virtual terminal (SWCD) mounted on implement bracket

1шт.

19

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

3шт.

20

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

3шт.

21

83964105

SCREW,Pan HD, M5 x 16mm

3шт.

22

82017871

RELAY,12V, 20A

2шт.

23

87655820

HARNESS

Incl.24, Serial Range: -C6725

1шт.

W/Equip.012-613

1шт.

24

82012869

CABLE TIE,300mm L, Nylon, Black

CABLE STRAP

9шт.

W/Equip.012-613

1шт.

25

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

M6X20

4шт.

W/Equip.012-613

1шт.

23

84264480

HARNESS

, Start Serial: D6725

1шт.

W/Equip.012-613

1шт.

26

84268760

SUPPORT

, Start Serial: D6725

1шт.
