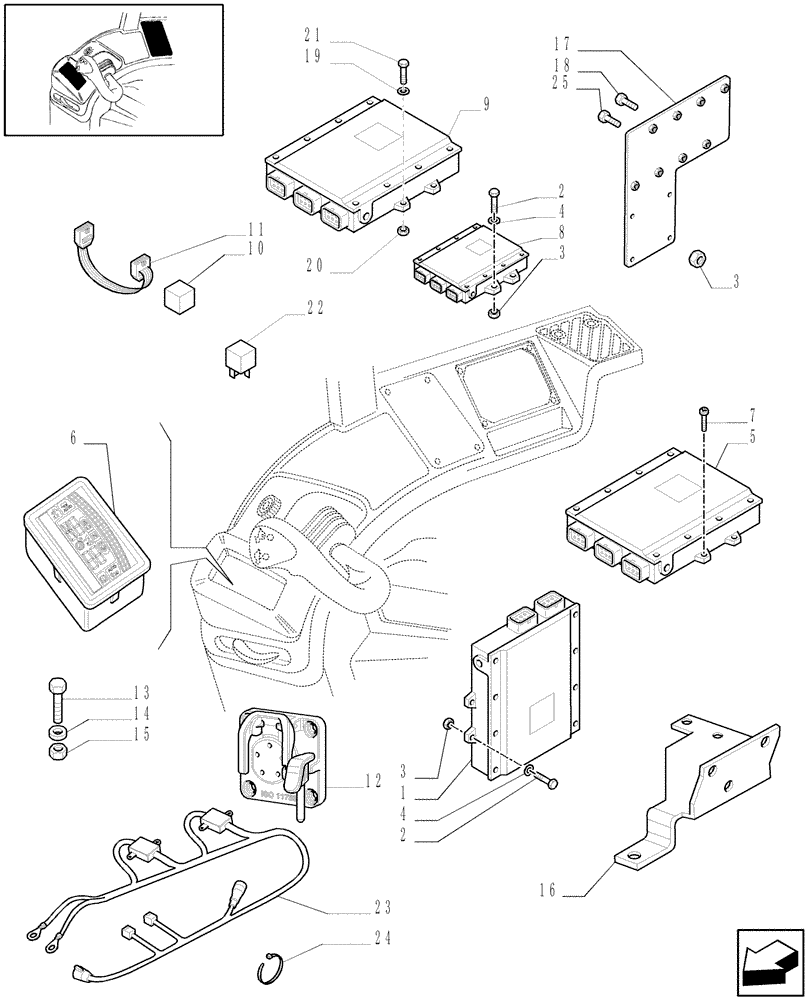

Запчасти Case IH PUMA 195 (1.97.2[01]) - ELECTRONIC CONTROL UNIT - TRANSMISSION CONTROL MODULE - C6084 (10) - OPERATORS PLATFORM/CAB

1

87524050

MODULE

30 KPH, 2WD, Serial Range: -C5608

1шт.

W/STD and W/Equip. 281, 17 x 6 30 Kph FPS W/Clutchless power shuttle & autoshift

1шт.

1

87524103

MODULE

40/50 KPH 4WD, Serial Range: -CC5608

1шт.

1

84225110R

REMAN-MODULE

Puma 165, Puma 180, Puma 195, Puma 210, All BSN C6084, Reman For New P/N's 87524103, 87524104, 87524105, 87524106, 87524107, 84225110,

1шт.

1

84225110C

CORE-MODULE

Return Number

1шт.

1

87524082

MODULE

, Serial Range: -C5608

1шт.

W/Equip. 571, 19 x 6 40 Kph FPS W/Clutchless power shuttle & autoshift

1шт.

1

84225111R

REMAN ELECT CONTROL

PUMA 165, PUMA 180, PUMA 195, PUMA 210, All Serial Range: -C5608 (1/07-), Reman For New PN 87524082

1шт.

1

84225111C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

87524104

MODULE

40/50 KPH, 4WD, Serial Range: C5609-D5608

1шт.

1

84225110R

REMAN-MODULE

Puma 165, Puma 180, Puma 195, Puma 210, All BSN C6084, Reman For New P/N's 87524103, 87524104, 87524105, 87524106, 87524107, 84225110,

1шт.

1

84225110C

CORE-MODULE

Return Number

1шт.

1

87524051

MODULE

30 KPH, 2WD, Serial Range: C5609-D5608

1шт.

W/STD and W/Equip. 281, 17 x 6 30 Kph FPS W/Clutchless power shuttle & autoshift

1шт.

1

87524083

MODULE

40 KPH, Serial Range: C5609-D5608

1шт.

W/Equip. 571, 19 x 6 40 Kph FPS W/Clutchless power shuttle & autoshift

1шт.

1

87524052

MODULE

30 KPH, 2WD, Serial Range: D5609-C5990

1шт.

W/STD and W/Equip. 281, 17 x 6 30 Kph FPS W/Clutchless power shuttle & autoshift

1шт.

1

87524084

MODULE

40 KPH, Serial Range: D5609-C5990

1шт.

W/Equip. 571, 19 x 6 40 Kph FPS W/Clutchless power shuttle & autoshift

1шт.

1

84225111R

REMAN ELECT CONTROL

PUMA 165, PUMA 180, PUMA 195, PUMA 210, All Serial Range: D5609-C5990 (1/07-), Reman For New PN 87524084

1шт.

1

84225111C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

87524105

MODULE

40/50 KPH, 4WD, Serial Range: D5609-C5990

1шт.

1

84225110R

REMAN-MODULE

Puma 165, Puma 180, Puma 195, Puma 210, All BSN C6084, Reman For New P/N's 87424103, 87524104, 87524105, 87524106, 87524107, 84225110,

1шт.

1

84225110C

CORE-MODULE

Return Number

1шт.

1

87524106

MODULE

, Serial Range: D5990-C5991

1шт.

1

84225110R

REMAN-MODULE

Puma 165, Puma 180, Puma 195, Puma 210, All BSN C6084, Reman For New P/N's 87514103, 87524104, 87524105, 87524106, 87524107, 842251110,

1шт.

1

84225110C

CORE-MODULE

Return Number

1шт.

1

87524107

MODULE

, Start Serial: D5991

1шт.

1

84225110R

REMAN-MODULE

Puma 165, Puma 180, Puma 195, Puma 210, All BSN C6084, Reman For New P/N's 87524103, 87524104, 87524105, 87524106, 87524107, 84225110,

1шт.

1

84225110C

CORE-MODULE

Return Number

1шт.

1

87524085

MODULE

, Serial Range: D5990-C5991

1шт.

W/Equip. 613, virtual terminal (SWCD) mounted on implement bracket

1шт.

1

84225111R

REMAN ELECT CONTROL

PUMA 165, PUMA 180, PUMA 195, PUMA 210, All Serial Range: D5990-C5991 (1/07-), Reman For New PN 87524085

1шт.

1

84225111C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

87524086

MODULE

, Start Serial: D5991

1шт.

W/Equip. 613, virtual terminal (SWCD) mounted on implement bracket

1шт.

1

84225111R

REMAN ELECT CONTROL

PUMA 165, PUMA 180, PUMA 195, PUMA 210, All Start Serial: D5991 (1/07-), Reman For New PN 87524086

1шт.

1

84225111C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

87524053

MODULE

, Serial Range: D5990-C5991

1шт.

W/Equip. 345, advanced processor for front HPL, front suspension, EHR's

1шт.

1

87524054

MODULE

, Start Serial: D5991

1шт.

W/Equip. 345, advanced processor for front HPL, front suspension, EHR's

1шт.

2

83964105

SCREW,Pan HD, M5 x 16mm

1шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

1шт.

4

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

1шт.

5

47130674

ECU

40 KPH 2WD

1шт.

5

47130674R

REMAN ELECT CONTROL

Reman for New P/N 47130674

1шт.

5

47130674C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

47130171

DISPLAY

2WD, Serial Range: -C5513

1шт.

6

87316445

ECU

, Serial Range: -C5513

1шт.

6

87569995

DISPLAY

, Start Serial: D5513

1шт.

7

15643901

SELF-TAP SCREW,Pan Hd, M8 x 9.50mm

3шт.

8

87585567

MODULE

1шт.

W/Equip. 570, 17 x 6 30 Kph FPS W/Clutchless power shuttle & autoshift (optional features)

1шт.

9

87524030

MODULE

, Serial Range: -C5609

1шт.

W/Equip. 345, advanced processor for front HPL, front suspension, EHR's

1шт.

9

87524031

MODULE

, Start Serial: D5609

1шт.

W/Equip. 345, advanced processor for front HPL, front suspension, EHR's

1шт.

10

82038683

ELEC. TERMINAL PIN

ELEC CONNECTOR

1шт.

W/Equip. 613, virtual terminal (SWCD) mounted on implement bracket

1шт.

11

87533525

HARNESS

, Serial Range: -C5687

1шт.

W/Equip. 613, virtual terminal (SWCD) mounted on implement bracket

1шт.

11

87638191

WIRE HARNESS

1шт.

W/Equip. 613, virtual terminal (SWCD) mounted on implement bracket

1шт.

12

87522416

ELEC CONNECTOR,Female, 5 Cavities

1шт.

W/Equip. 613, virtual terminal (SWCD) mounted on implement bracket

1шт.

13

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

5шт.

14

10571579

LOCK WASHER,M6

5шт.

15

15896211

NUT,M6, Cl 8

5шт.

16

87606848

SUPPORT

For Rear ISOBUS Connector Less Air Brakes

1шт.

17

87594470

SUPPORT

1шт.

W/Equip. 613, virtual terminal (SWCD) mounted on implement bracket

1шт.

18

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

4шт.

W/Equip. 613, virtual terminal (SWCD) mounted on implement bracket

1шт.

19

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

3шт.

20

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

3шт.

21

83964105

SCREW,Pan HD, M5 x 16mm

3шт.

22

82017871

RELAY,12V, 20A

2шт.

23

87655820

HARNESS

Incl.24, Start Serial: D5687

1шт.

W/Equip.012-613

1шт.

24

82012869

CABLE TIE,300mm L, Nylon, Black

CABLE STRAP, Start Serial: D5687

9шт.

W/Equip.012-613

1шт.

25

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

M6X20

4шт.

W/Equip.012-613

1шт.
