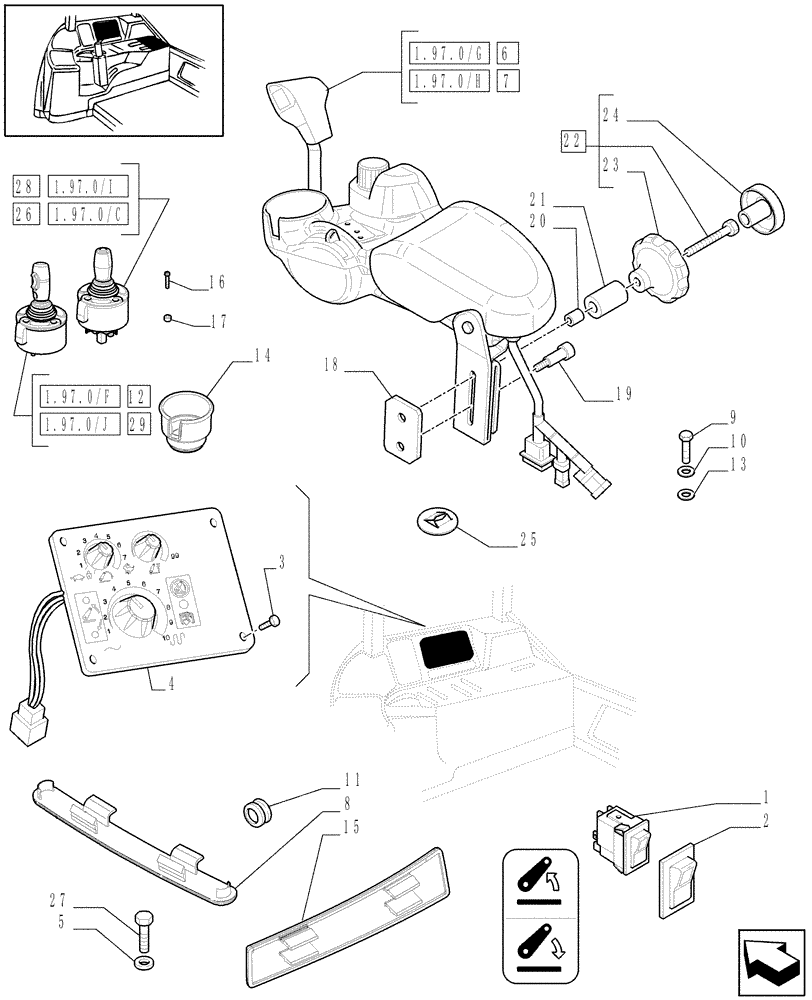

Запчасти Case IH PUMA 195 (1.97.0[01A]) - ELECTRONIC UNIT CONTROL - D6303 (10) - OPERATORS PLATFORM/CAB

1

82020694

SWITCH ASSY

Hyd. Lift Control Arm External

2шт.

2

81864168

COVER

2шт.

3

15691301

SELF-TAP SCREW,Cross Oval Hd, M4.2 x 13mm

4шт.

4

87530852

PANEL

1шт.

5

14183674

SPRING NUT,M4.8, Push

2шт.

6

87483885

ARMREST

ASSY

1шт.

W/VAR.015-935-937-166-168 only

1шт.

7

87483886

ARMREST

ASSY

1шт.

W/VAR.097-936-165-167 also

1шт.

8

87562241

PLUG

1шт.

9

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

9

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

10

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

11

81862738

PLUG,M38 x 28 x 5mm

28MM

3шт.

12

87491613

JOYSTICK

, Serial Range: -C6587

1шт.

84261738R

REMAN-JOYSTICK

PUMA 195, PUMA 165, PUMA 180, PUMA 210 ALL SERIAL RANGE: -C6587 (1/07-), Reman For New P/N 87491613

1шт.

84261738C

CORE-JOYSTICK

Return Number

1шт.

W/VAR.165-166-167-168 Only

1шт.

87491613C

CORE-JOYSTICK

Return Number, JOYSTICK

1шт.

13

12628901

WASHER,8.15mm ID x 25mm OD x 4mm Thk

2шт.

14

87601778

HOLDER

1шт.

15

87385341

BLANK-OFF PLUG,3.5mm Thk, Black

1шт.

16

15643001

SCREW,Pozidriv Pan Hd, M3.5 x 1.3 x 25mm

3шт.

W/VAR.936-937 only

1шт.

17

87317246

SPACER

3шт.

18

87570575

PLATE

1шт.

19

87631912

PIN,9.9mm OD x 52mm L

1шт.

20

87631915

BUSHING,8.15mm ID x 9.9mm OD x 19.5mm L

1шт.

21

87631914

SPACER

1шт.

22

87631910

KNOB

1шт.

23

87640229

KNOB

1шт.

24

87640230

CAP

1шт.

25

47057509

FASTENER

2шт.

26

87712552

JOYSTICK

, Serial Range: -C6587

1шт.

27

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

28

84261736

JOYSTICK

1шт.

29

84261738

JOYSTICK

1шт.

84261738R

REMAN-JOYSTICK

PUMA 165, PUMA 180, PUMA 195, PUMA 210 All (1/07-)

1шт.

84261738C

CORE-JOYSTICK

Return Number

1шт.
