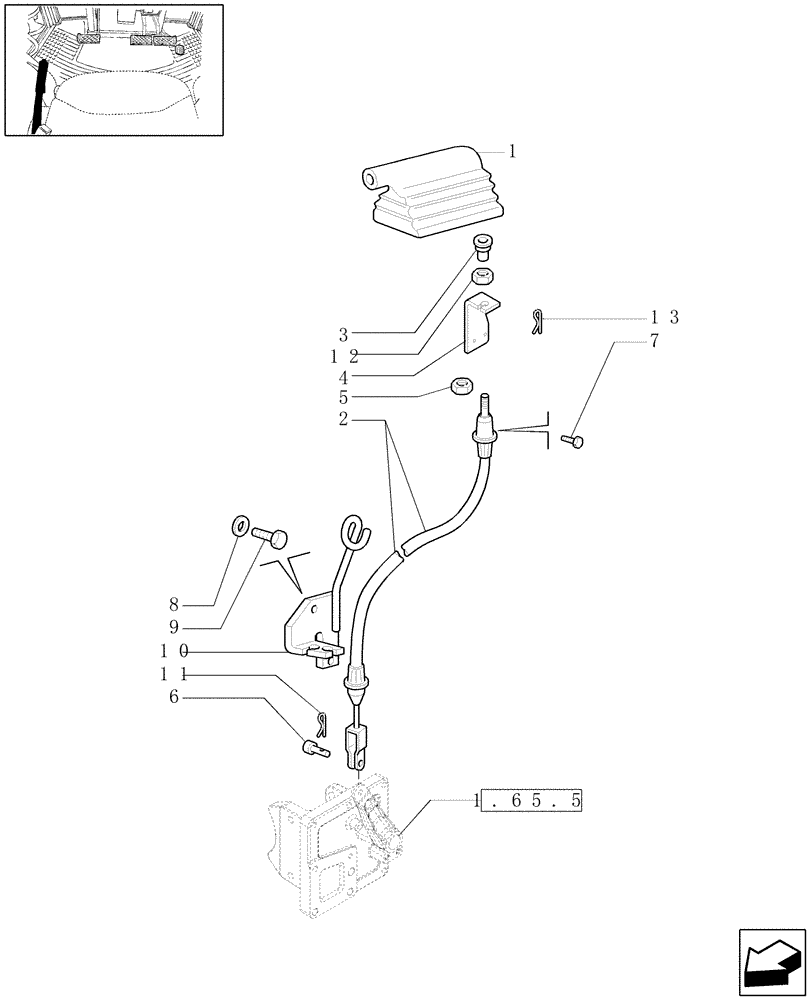

Запчасти Case IH PUMA 195 (1.95.1) - HANDBRAKE CONTROL (10) - OPERATORS PLATFORM/CAB

1

81866095

BOOT

1шт.

2

87531706

CABLE,1210mm L

, Serial Range: -Z9BH01656

1шт.

2

87470439

CABLE,1178.1mm L

, Start Serial: Z9BH01657

1шт.

3

82000974

NUT,Adj., M8, 1.25 Pitch, 23.00mm High, Zinc

1шт.

4

87394905

BRACKET

1шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

6

10033411

PIN,10mm OD x 27mm L

1шт.

7

87305546

SCREW,Phillips Drive, Oval HD, M5 x 10mm, Cl 4.8

M5 x 12

1шт.

8

82879352

LOCK WASHER,M12

2шт.

9

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

10

82031225

BRACKET

1шт.

11

10766901

COTTER PIN,M3.2 x 25

1шт.

12

16101521

NUT,M12 x 1.25, Cl 10

2шт.

13

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.
