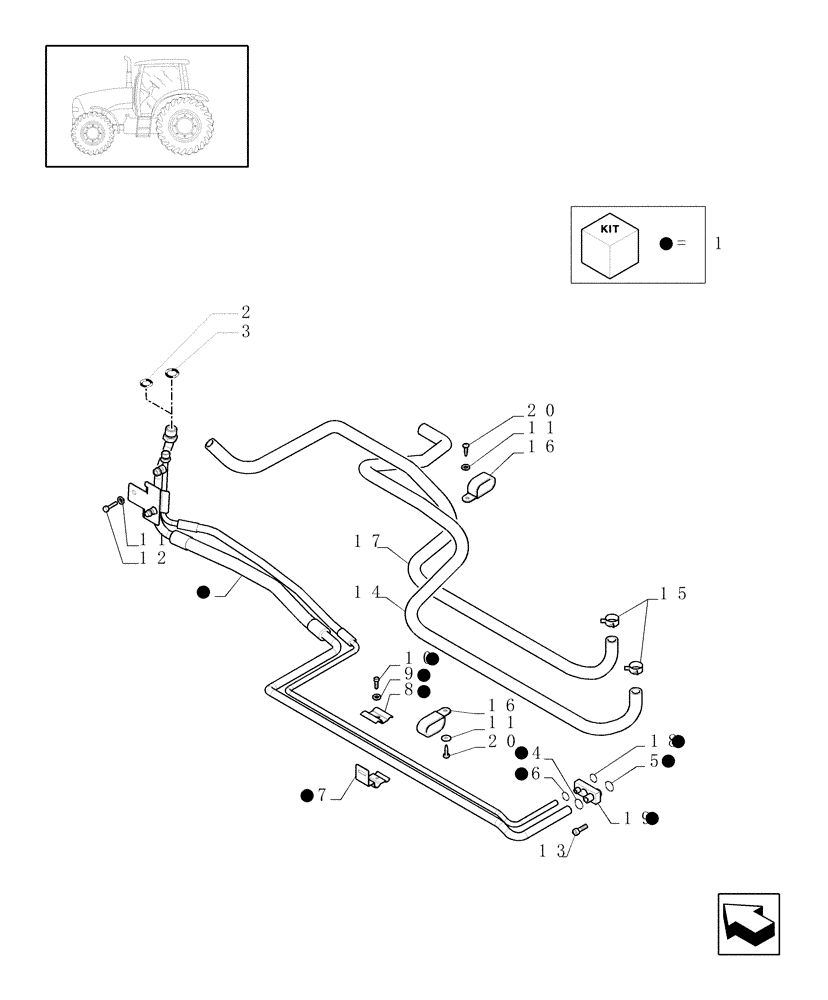

Запчасти Case IH PUMA 195 (1.94.3[04]) - AIR CONDITIONING SYSTEM PIPES (10) - OPERATORS PLATFORM/CAB

1

87576097

PIPE ASSY.

, Serial Range: -Z8BH07467

1шт.

1

84222772

PIPE ASSY.

, Start Serial: Z8BH07468

1шт.

2

82000789

O-RING,1.85mm Thk x 17.6mm ID

Green

1шт.

3

82000790

O-RING,1.85mm Thk x 26.54mm ID

1.06" ID x .070" Thk, Green

1шт.

4

10319983

O-RING,1.6mm Thk x 16.1mm ID

1шт.

5

82007848

O-RING,2.4mm Thk x 13.4mm ID

1шт.

6

10318883

O-RING,8.1mm ID x 1.6mm Width

1шт.

7

87302954

BRACKET

1шт.

8

87302953

CLAMP,4.5mm HD

1шт.

9

10615279

LOCK WASHER,M4, Serr

1шт.

10

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

1шт.

11

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

12

82011899

SCREW,Pan, M6 x 20mm, Cl 4.8

Pan Hd, M6 x 2 x 14

2шт.

13

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

1шт.

14

87308112

HOSE,15.25 mm ID

, Serial Range: -C5676

1шт.

14

87621487

A/C HOSE,15.25 mm ID x 1140.00 mm

Return, Start Serial: D5676

1шт.

15

82019905

HOSE CLAMP,22 - 26mm X 12mm

2шт.

16

82023568

CLAMP,2 Hoses

1шт.

17

87308111

HOSE,15.25 mm ID

, Serial Range: -C5676

1шт.

17

87621480

A/C HOSE,15.25 mm ID x 1123.00 mm

Feed, Start Serial: D5676

1шт.

18

82007847

O-RING,1.8mm Thk x 6.7mm ID

1шт.

19

82035724

FITTING

1шт.

20

82880748

SCREW,Pozidrive, Pan HD, M6 x 2 x 14mm, Cl 4.8

2шт.
