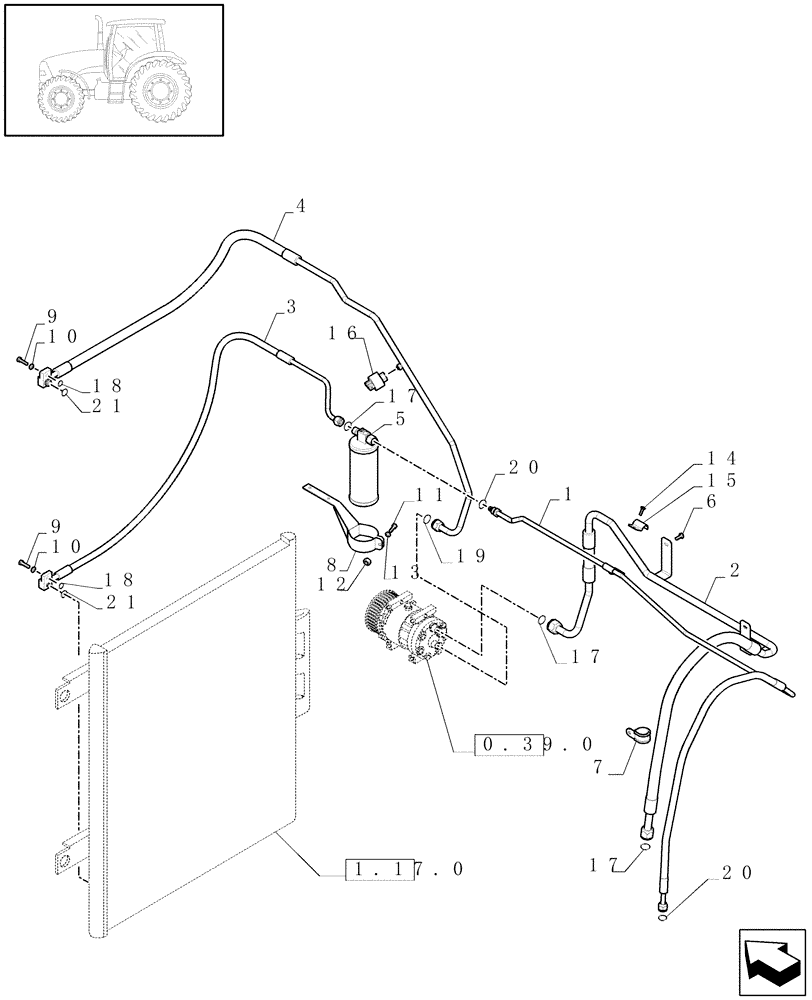

Запчасти Case IH PUMA 195 (1.94.3[03B]) - AIR CONDITIONING SYSTEM PIPES - D5843 (10) - OPERATORS PLATFORM/CAB

1

87576076

A/C HOSE

Incl. 14, 15, 17

1шт.

2

87717595

PIPE ASSY.,16 mm OD x 737, 378 mm L

Incl. 20

1шт.

3

87718033

A/C HOSE,10 mm OD

Incl. 17, 18, 21

1шт.

4

87666193

A/C HOSE

Incl. 18, 19, 21

1шт.

5

87343822

RECEIVER-DRYER

1шт.

6

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

7

87331631

CLAMP

1шт.

8

87524801

CLAMP BRACKET

1шт.

9

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

2шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

11

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

12

12574211

NUT,M6 x 1, Cl 8

1шт.

13

10516474

LOCK WASHER

1шт.

14

83964105

SCREW,Pan HD, M5 x 16mm

2шт.

15

87314368

BRACKET,16mm ID, 6mm Bolt Hole, J Type

2шт.

16

84233818

PRESSURE SWITCH

1шт.

17

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

4шт.

18

10319183

O-RING,13.1mm ID x 1.6mm Width

2шт.

19

82000792

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

2шт.

20

82000791

O-RING,1.78mm Thk x 14mm ID, 70 Duro

2шт.

21

14450683

O-RING,10.8mm ID x 2.4mm Width

2шт.
