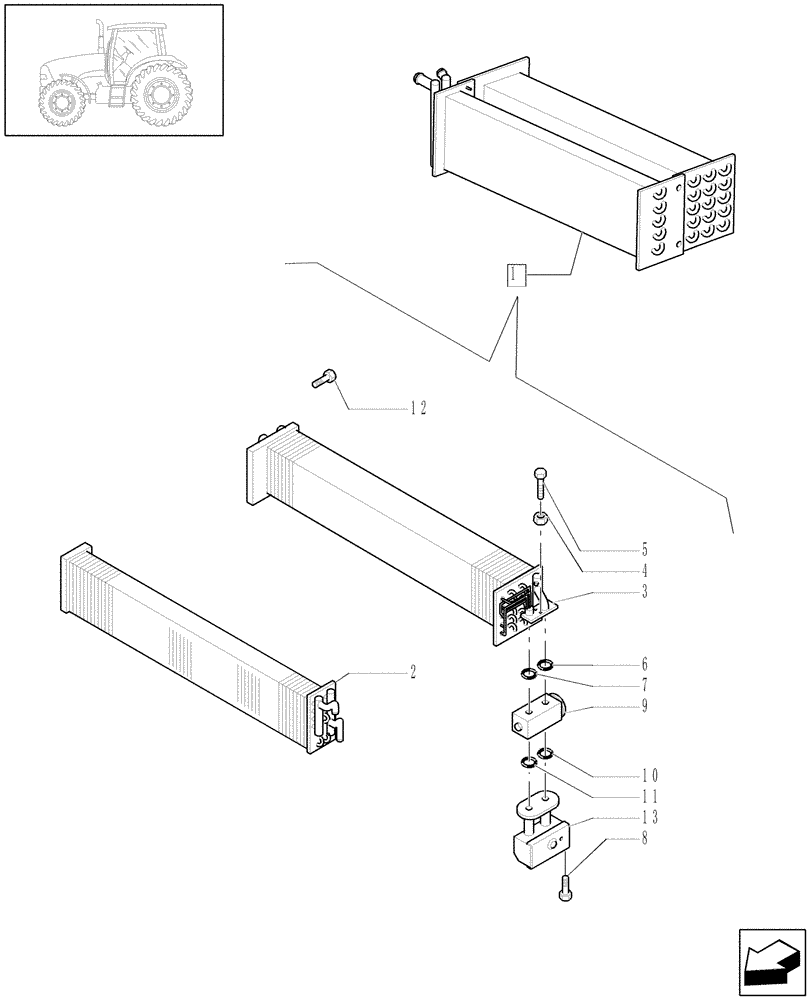

Запчасти Case IH PUMA 195 (1.94.2/ C) - AIR CONDITIONING BREAKDOWN (10) - OPERATORS PLATFORM/CAB

1

82033007

EVAPORATOR

Assy., Includes Ref., Serial Range: 2-13

1шт.

2

82033100

UNIT HEATER

1шт.

3

82033008

EVAPORATOR

1шт.

4

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

5

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

2шт.

6

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

(.426" ID x .070" Thk)

1шт.

7

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

8

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

9

82023542

VALVE, THERMAL EXPAN

1шт.

10

82000789

O-RING,1.85mm Thk x 17.6mm ID

Green

1шт.

11

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

(5/16" ID x .070" Thk), Green

1шт.

12

15902604

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 9.50mm

4шт.

13

82027885

PIPE

1шт.
