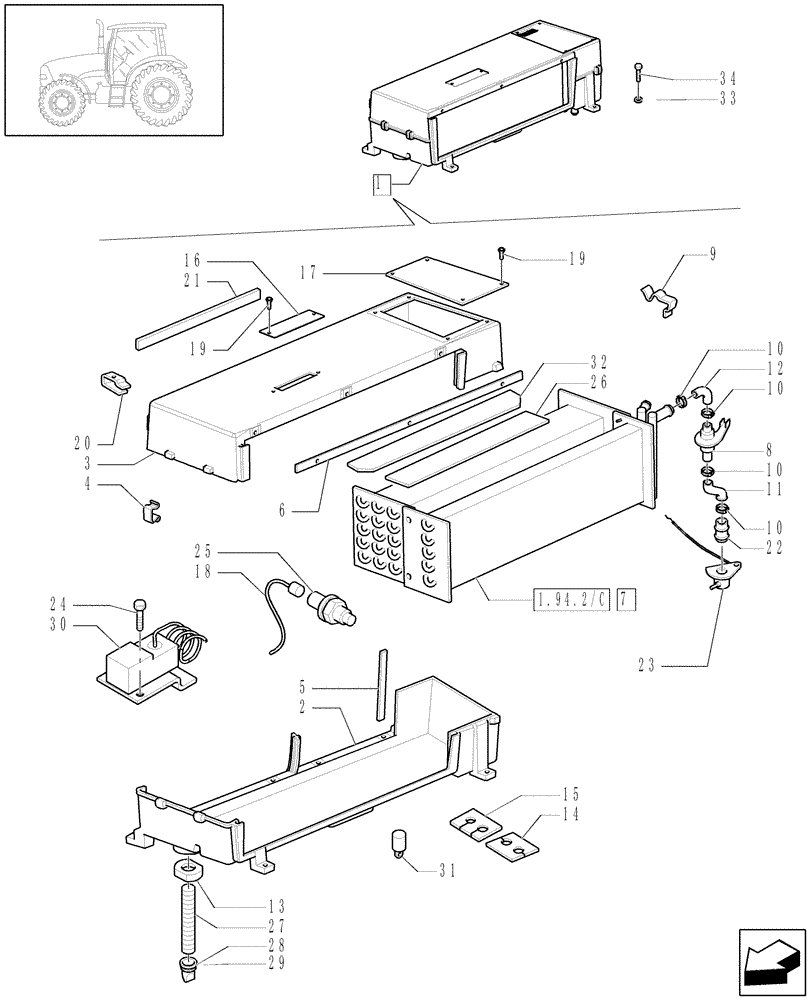

Запчасти Case IH PUMA 195 (1.94.2/ B) - AIR CONDITIONING BREAKDOWN - C5941 (10) - OPERATORS PLATFORM/CAB

1

82036400

AIR CONDITIONER

1шт.

2

82033005

HOUSING

1шт.

3

82033006

HOUSING

1шт.

4

82024392

CLIP,7mm W

4шт.

5

82023564

SEAL,765.6mm L x 8mm Thk

1шт.

6

82024395

SEAL,536.1mm L x 5mm Thk

1шт.

7

82033007

EVAPORATOR

1шт.

8

82023543

VALVE,Water

1шт.

9

82024396

CLIP,9.5mm W

1шт.

10

82019905

HOSE CLAMP,22 - 26mm X 12mm

4шт.

11

82028940

FLEXIBLE HOSE

1шт.

12

82028941

FLEXIBLE HOSE

1шт.

13

82028942

SEAL,32mm ID x 48mm OD x20mm Thk

2шт.

14

82028943

SEAL,20mm Thk

1шт.

15

82028953

SEAL

1шт.

16

82024382

PLATE

1шт.

17

82028946

BRACKET

1шт.

18

82027899

WIRE HARNESS

1шт.

19

82028948

SCREW,M3 x 6mm

3x6

6шт.

20

83907330

SPRING NUT

NUT

13шт.

21

82024750

SEAL,1235mm L x 5mm Thk

1шт.

22

82028945

HYD CONNECTOR

1шт.

23

82027897

BOWDEN CONTROL,1796.5mm L

A/C Temp. Control

1шт.

24

15688001

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 13mm

1шт.

25

82036401

PRESSURE SWITCH

A/C LOW PRESSURE

1шт.

26

82033109

SEAL,3mm Thk, Grey

1шт.

27

82028950

FLEXIBLE HOSE,12.70 mm ID x 152.50 mm

2шт.

28

82023560

VALVE

2шт.

29

82028949

VALVE

2шт.

30

6914382

THERMOSTATIC SWITCH

WHEN REPLACING 6914382 THERMOSTAT SWITCH PLEASE ORDER 84240633 AIR CONDITIONING TEMPERATURE CONTROL SWITCH SERVICE KIT (INCLUDES:THERMOSTAT SWITCH)

1шт.

31

82033261

CAP,5/8"

2шт.

32

82033453

PLATE

1шт.

33

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

4шт.

34

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.
