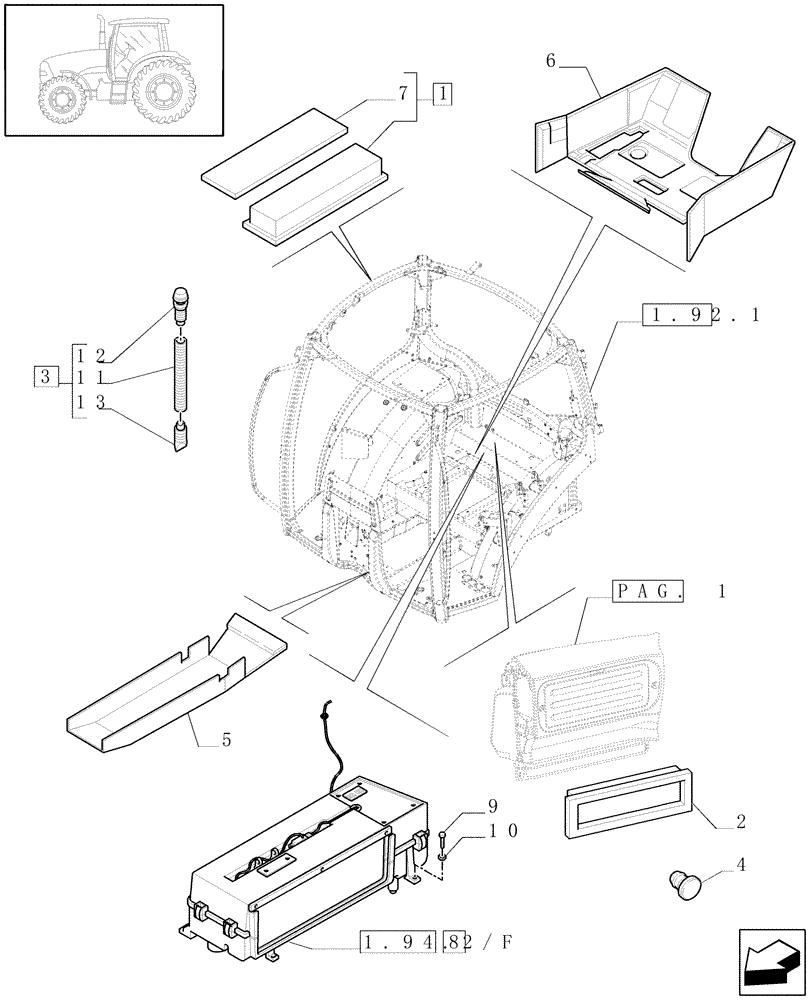

Запчасти Case IH PUMA 195 (1.94.2[03A]) - HEATING/AIR CONDITIONING - HEATER-AIR CONDITIONER AND RELATED PARTS - D6481 (10) - OPERATORS PLATFORM/CAB

1

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

2шт.

2

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Recirculation

1шт.

3

84232466

TUBE

A/C HOSE ASSY

2шт.

4

82027031

PLUG,M10

1шт.

5

87661587

INSULATOR

RH

1шт.

5

87661589

INSULATOR

LH

1шт.

6

87661585

INSULATOR

1шт.

7

82024373

FOAM

2шт.

8

84210146

AIR CONDITIONER

1шт.

9

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

10

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

11

84232468

HOSE,25.40 mm ID x 800.00 mm

A/C HOSE

2шт.

12

84231998

DRAIN

2шт.

13

84232000

CHECK VALVE

2шт.
