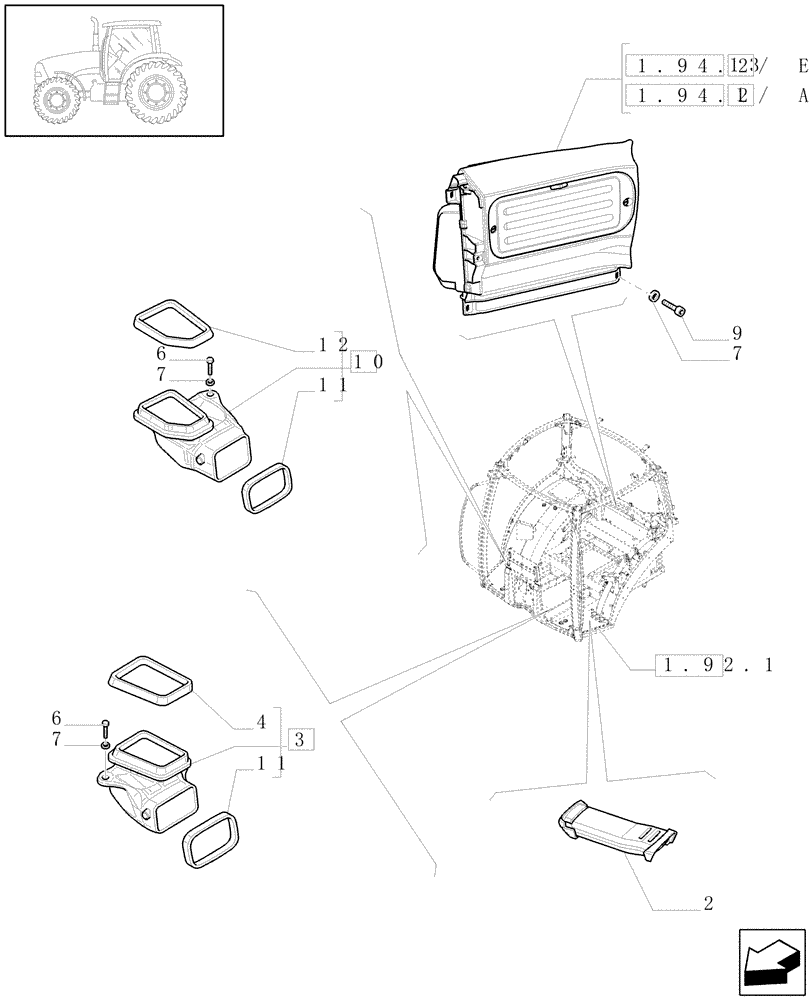

Запчасти Case IH PUMA 195 (1.94.2[01]) - HEATING/AIR CONDITIONING - FAN AND VENTILATION DUCTS (10) - OPERATORS PLATFORM/CAB

1

82033106

BLOWER

, Serial Range: -C6269

1шт.

1

87663967

BLOWER

, Serial Range: D6269-Z8BH25448

1шт.

2

87301551

DUCT

RH

1шт.

2

87301550

DUCT

LH

1шт.

3

87390278

DUCT

LH

1шт.

4

87523726

SEAL

LH

1шт.

6

87578958

SELF-TAP SCREW,M6.3 x 1.8 x 25mm

RH, M6.3x25

2шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

9

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

2шт.

10

87518106

DUCT

RH

1шт.

11

87523573

SEAL

2шт.

12

87523583

SEAL

RH

1шт.

13

87651396

BLOWER,12V

, Start Serial: Z8BH25449

1шт.
