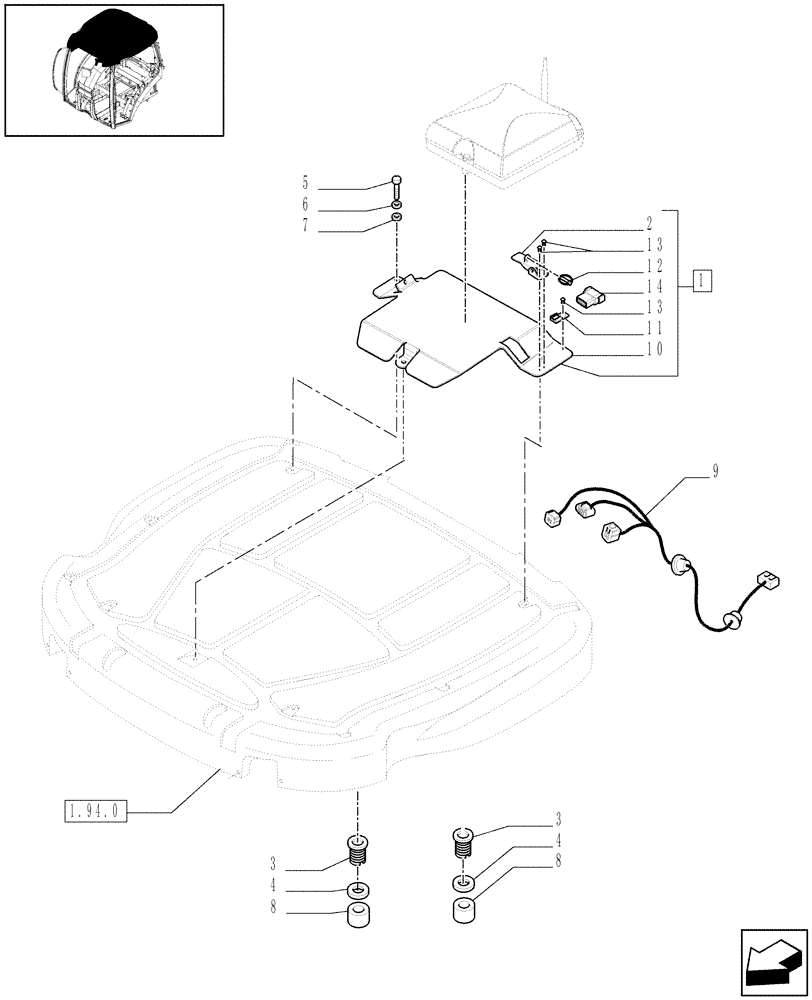

Запчасти Case IH PUMA 195 (1.94.0/04) - (VAR.190) AUTO GUIDANCE STEERING SYSTEM - BRACKET AND ANTENNA (10) - OPERATORS PLATFORM/CAB

1

87634999

SUPPORT

ASSY

1шт.

2

87308870

LATCH

1шт.

3

87652569

INSERT,M6 x 14 mm L

3шт.

4

81869856

WASHER,6mm ID x 17mm OD

3шт.

5

10902434

SCREW,Hex, M6 x 20mm, Cl 10.9, Full Thd

3шт.

6

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

3шт.

7

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

3шт.

8

82034114

SPACER,M6 x 25mm L

3шт.

9

87629885

WIRE HARNESS

, Serial Range: -C5943

1шт.

9

87724812

WIRE HARNESS

, Start Serial: D5943

1шт.

10

87634998

SUPPORT

1шт.

11

87641585

MOUNTING PARTS

1шт.

12

87109290

LOCK PIN,25.4mm OD x 30mm L

1шт.

13

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

3шт.

14

87641584

MULTIPOLE CONNECTOR,12 Pole

1шт.
