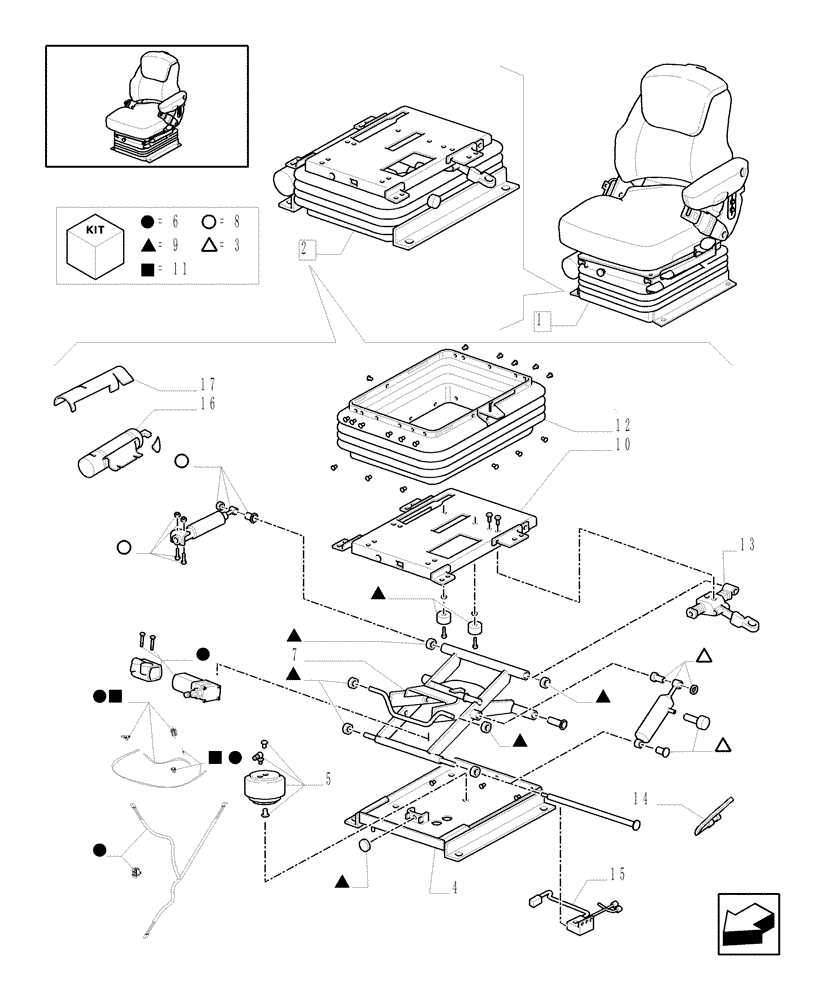

Запчасти Case IH PUMA 195 (1.93.3/ E[03]) - (VAR.319) DELUXE AIR SEAT WITH REELING SEAT BELT AND HEATED CUSHION IN RED LEATHER - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

1

87567638

DRIVER SEAT

ASSY

1шт.

2

87529827

SUSPENSION

Suspension ASSY

1шт.

3

87529993

SUSPENSION

Suspension Shock Absorber

1шт.

4

87529826

REPAIR KIT

Lower Housing

1шт.

5

82020819

KIT

Air Spring

1шт.

6

87529848

KIT

Compressor W/Heating

1шт.

7

82020846

KIT

Suspension Scissors

1шт.

8

82020830

SERVICE KIT

Suspension Fore/Aft Damper

1шт.

9

82020845

SERVICE KIT

Bumper and Roller

1шт.

10

87583455

HOUSING

Upper Housing

1шт.

11

87529857

SEAT ACCESSORY

Air Line

1шт.

12

82020843

KIT

Suspension Boot

1шт.

87347976

SERVICE KIT

Suspension Boot Clips

1шт.

13

82021020

SERVICE KIT

Fore/Aft Isolator

1шт.

14

87529793

HARNESS

1шт.

15

87529794

BOX

1шт.

16

87529821

AIR RESERVOIR

1шт.

17

87583456

COVER

1шт.
