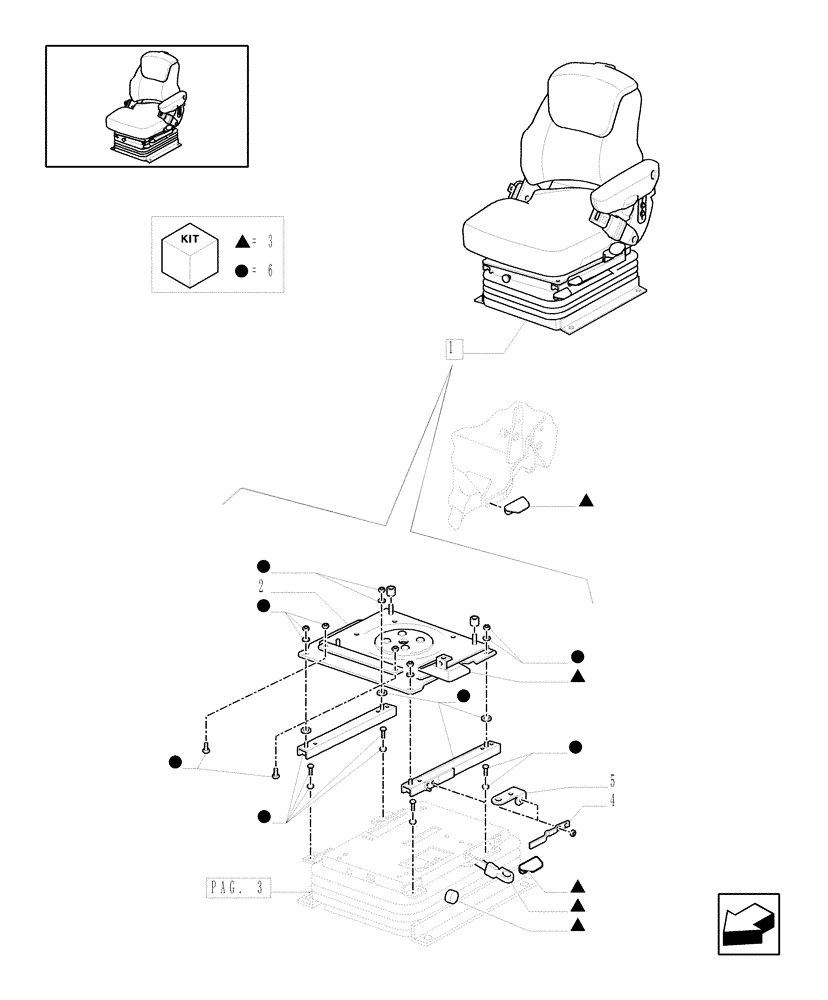

Запчасти Case IH PUMA 195 (1.93.3/ B[02]) - (VAR.964) DELUXE SEAT WITH REELING SEAT BELT AND HEATED CUSHION - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
![Схема запчастей Case IH PUMA 195 - (1.93.3/ B[02]) - (VAR.964) DELUXE SEAT WITH REELING SEAT BELT AND HEATED CUSHION - BREAKDOWN (10) - OPERATORS PLATFORM/CAB](https://partsell.ru/storage/images/caseih/1108037.png)
6
pag. 3
1
6
5
3
6
6
6
3
3
6
3
6
6
3
2
4
3
№
Артикул
Название
Примечание
Количество
1
82037129
DRIVER SEAT
ASSY
1шт.
2
87529813
PIVOT PLATE
Swivel
1шт.
3
82020839
KIT
Knobs
1шт.
4
82020809
SERVICE KIT
Slide Lever
1шт.
5
82020923
BRACKET
Lever Support
1шт.
6
82020814
SERVICE KIT
Slide
1шт.
Выбрано товаров: 6
