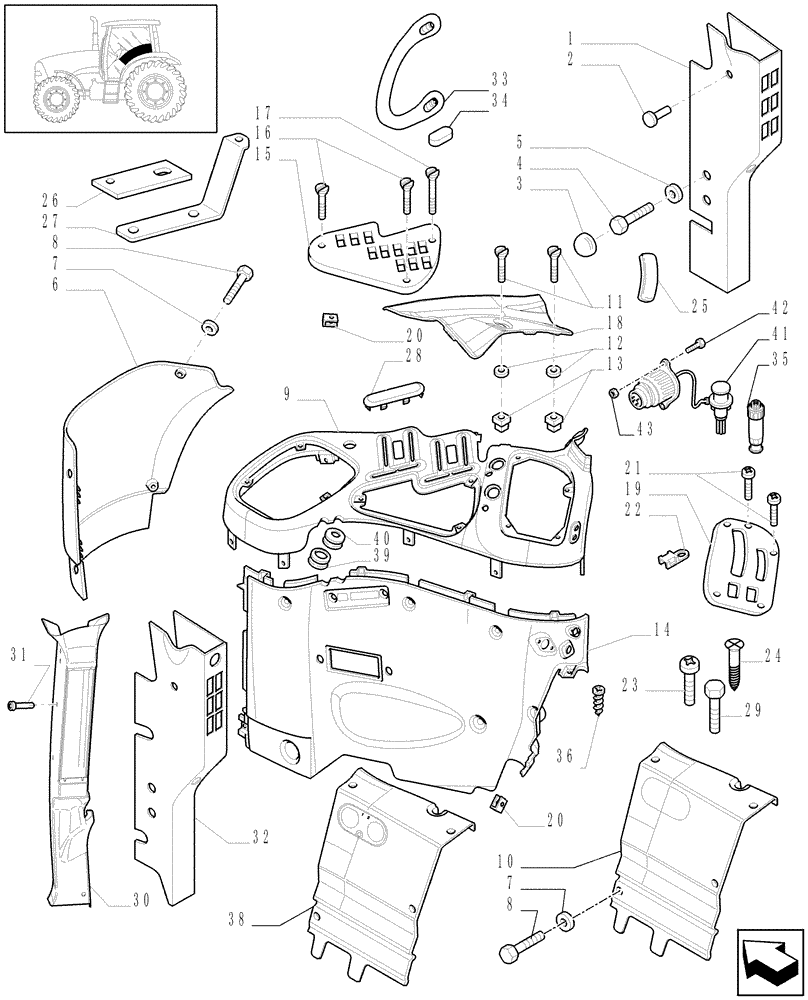

Запчасти Case IH PUMA 195 (1.93.0[02]) - CONTROLS COVER - C6514 (10) - OPERATORS PLATFORM/CAB

1

87315847

PADDING

RH, Serial Range: -C6000

1шт.

1

87479489

PADDING

RH, Start Serial: D6000

1шт.

2

83998841

STUD,7.85mm OD x 19.50mm L

3шт.

3

82012814

CAP,M10

2шт.

4

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

5

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

6

47057394

SOFT TRIM

RH

1шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

6шт.

8

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

9

47057482

PANEL

RH, Incl. 20, Serial Range: -C5844

1шт.

l/electronic hydraulic remotes

1шт.

9

87614879

PANEL

RH, Incl. 20, Start Serial: D5844

1шт.

l/electronic hydraulic remotes

1шт.

10

82027462

PANEL

, Serial Range: -C6000

1шт.

11

47057750

PIN

2шт.

12

81875581

RETAINER,6mm ID x 12.5mm OD x 0.5mm Thk

2шт.

13

83994515

SPRING CLIP

2шт.

14

47057484

PANEL

, Serial Range: -C5844

1шт.

14

87710212

PANEL

Incl. 20, Serial Range: -D5844

1шт.

15

47057010

PANEL

1шт.

16

13276417

SCREW,Posidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

2шт.

17

13274617

SCREW,Pozidriv Pan Hd, M5 x 25mm

, Serial Range: -C5844

3шт.

17

15647201

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 25mm

, Start Serial: D5844

3шт.

18

47057398

SOFT TRIM

1шт.

19

47057011

PANEL

1шт.

20

14371271

SPRING NUT,M5, U, 23.7mm long

, Serial Range: -C5844

15шт.

20

87567755

SPRING NUT,M5

NUT, Start Serial: D5844

15шт.

21

47056669

SCREW

4шт.

22

47056773

RETAINER COLLAR,5mm ID x 19.1mm L x 9.5mm W

4шт.

23

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

, Serial Range: -C5844

2шт.

23

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

4шт.

24

15904507

SCREW,Pozidriv Pan Hd, M5.5 x 1.8 x 16mm

4шт.

25

47057802

COVER

1шт.

26

47057502

PLATE

1шт.

27

87570997

BRACKET

1шт.

28

47057383

COVER

1шт.

28

47057802

COVER

1шт.

29

13274217

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd

, Serial Range: -C5844

9шт.

30

87388211

PADDING

RH

1шт.

31

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

6шт.

32

87567842

SOFT TRIM

RH, VAR.613, Serial Range: -Z8BH09886

1шт.

Valid for VAR.012-463

1шт.

32

87740505

SOFT TRIM

RH, Serial Range: Z8BH09887-C6000

1шт.

Valid for VAR.012-463

1шт.

32

87479488

PADDING

RH, Start Serial: D6000

1шт.

Valid for VAR.012-463

1шт.

33

87413139

HANDLE

VAR.865, Start Serial: Z7BH02058

1шт.

34

87413140

PLUG

VAR.865, Start Serial: Z7BH02058

2шт.

35

87304492

ELEC CONNECTOR

1шт.

36

15646907

SELF-TAP SCREW,Pozidriv Pan Hd, 16mm L

12x16, Start Serial: D5844

4шт.

37

15647007

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

12x19, Start Serial: D5844

9шт.

38

87479668

PANEL

, Start Serial: D6000

1шт.

39

D5NN14603K

GROMMET

14,27 x 19,05 x 25,40

1шт.

40

83905020

GROMMET,6.35mm ID x 22.22mm OD, Black

6,35 x 16,25 x 22,25

1шт.

41

87345189

WIRE HARNESS

ELECTRIC CABLE

1шт.

42

83912337

SELF-TAP SCREW,3.5mm OD x 1.3mm Thd x 22mm L

2шт.

43

16101711

NUT,M3, Cl 8

2шт.
