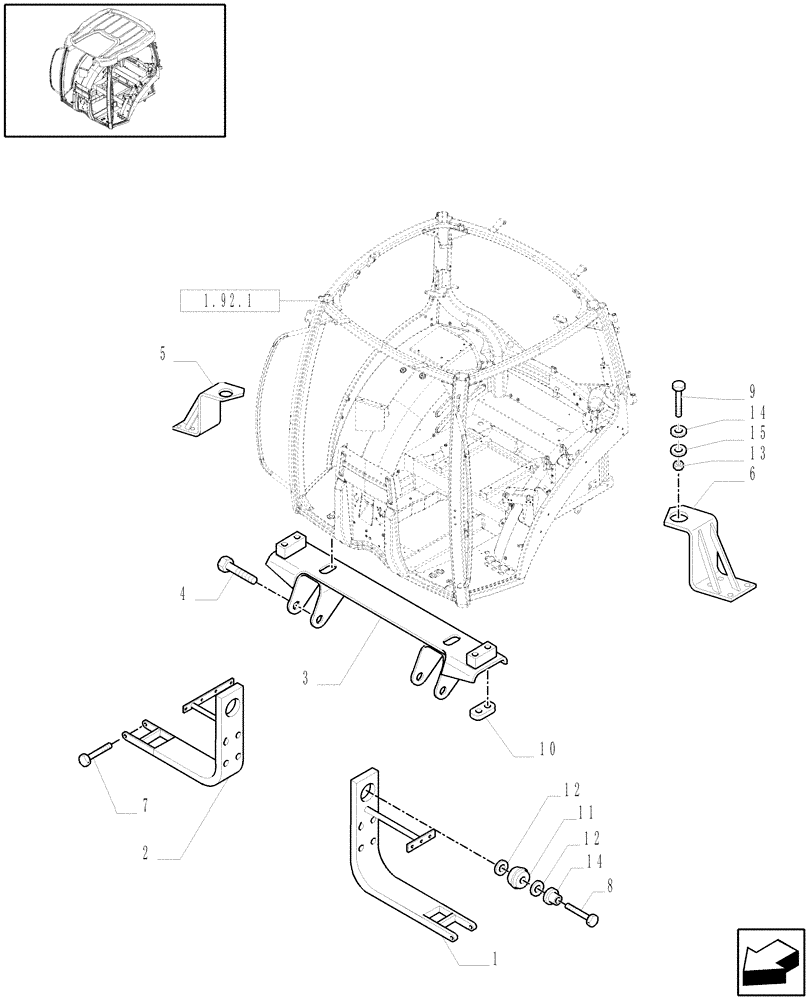

Запчасти Case IH PUMA 195 (1.92.6) - CAB SUPPORTS (10) - OPERATORS PLATFORM/CAB

1

87527276

SUPPORT

LH, Incl.11

1шт.

2

87527278

SUPPORT

RH, Incl.11

1шт.

3

87553298

SUPPORT

1шт.

4

11126521

BOLT,Hex, M20 x 140, 8.8

2шт.

5

82035565

SUPPORT

RH

1шт.

6

82035563

SUPPORT

LH

1шт.

7

11408324

BOLT,Hex, M14 x 1.5 x 35, 8.8, Full Thd

8шт.

8

87335549

BOLT,Hex, M20 x 150mm, Cl 8.8

4шт.

9

15990721

BOLT,Hex, M20 x 1.5 x 180mm, Cl 8.8

2шт.

10

87597203

SPECIAL NUT

2шт.

11

87396965

INSULATOR,100mm OD x 85.3mm L

Front

2шт.

12

10520324

WASHER,18.4mm ID x 32mm OD x 4mm Thk

8шт.

13

12575111

LOCK NUT,M20 x 1.5, Cl 8

2шт.

14

87302042

SPACER,21mm ID x 120mm OD x 8.7mm L

4шт.

15

14497101

WASHER,M20 x 37 x 3

2шт.
