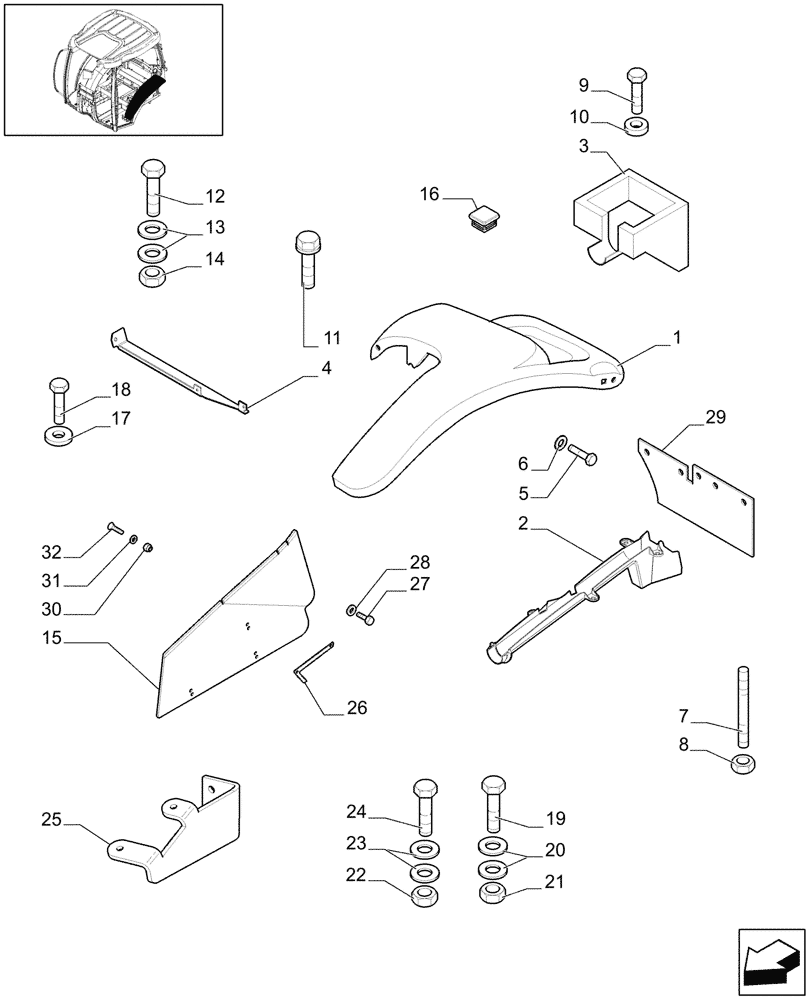

Запчасти Case IH PUMA 195 (1.92.5/02[01]) - (VAR.089/1) EXTREMITY LIGHTS FOR NAR OHIO WIDE FENDERS - FENDERS AND EXTENSIONS - C6722 (10) - OPERATORS PLATFORM/CAB

1

87606895

REAR FENDER

LH

1шт.

1

87606896

REAR FENDER

RH

1шт.

2

87329196

COVER

LH

1шт.

2

87329197

COVER

RH

1шт.

3

87383820

COVER

LH

1шт.

3

87383821

COVER

RH

1шт.

4

87389465

BRACKET

LH

1шт.

4

87389466

BRACKET

RH

1шт.

5

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

9шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

9шт.

7

13517021

STUD,M8 x 12mm x 25mm, Cl 8.8

2шт.

8

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

10

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

6шт.

11

83992627

CAPTIVE WASHER SCREW,Hex, M8 x 1.25 x 25mm, Pilot

1шт.

12

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

13

12644301

WASHER,M10 x 35 x 3

2шт.

14

11701711

NUT,Hex, M10, Cl 8, ZND

1шт.

15

87623580

DEFLECTOR

LH

1шт.

15

87484525

DEFLECTOR

RH, Serial Range: -Z9BH06644

1шт.

15

84156116

DEFLECTOR

, Start Serial: Z9BH06645

1шт.

16

82033880

PLUG,70mm ID

2шт.

17

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

3шт.

18

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

19

86511831

SCREW,Phillips Drive, Pan HD, M6 x 25mm

2шт.

20

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

21

12574211

NUT,M6 x 1, Cl 8

2шт.

22

12574211

NUT,M6 x 1, Cl 8

3шт.

23

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

6шт.

24

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

3шт.

25

82038220

BRACKET

LH

1шт.

25

82038222

BRACKET

RH

1шт.

26

87580850

SUPPORT

, Serial Range: -C5825

2шт.

26

87705291

SUPPORT

, Start Serial: D5825

2шт.

27

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

5шт.

28

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

6шт.

29

87395996

MUDFLAP

, Serial Range: -C5825

2шт.

29

87705290

MUDFLAP

, Start Serial: D5825

2шт.

30

12574211

NUT,M6 x 1, Cl 8

4шт.

31

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

10шт.

32

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

4шт.
