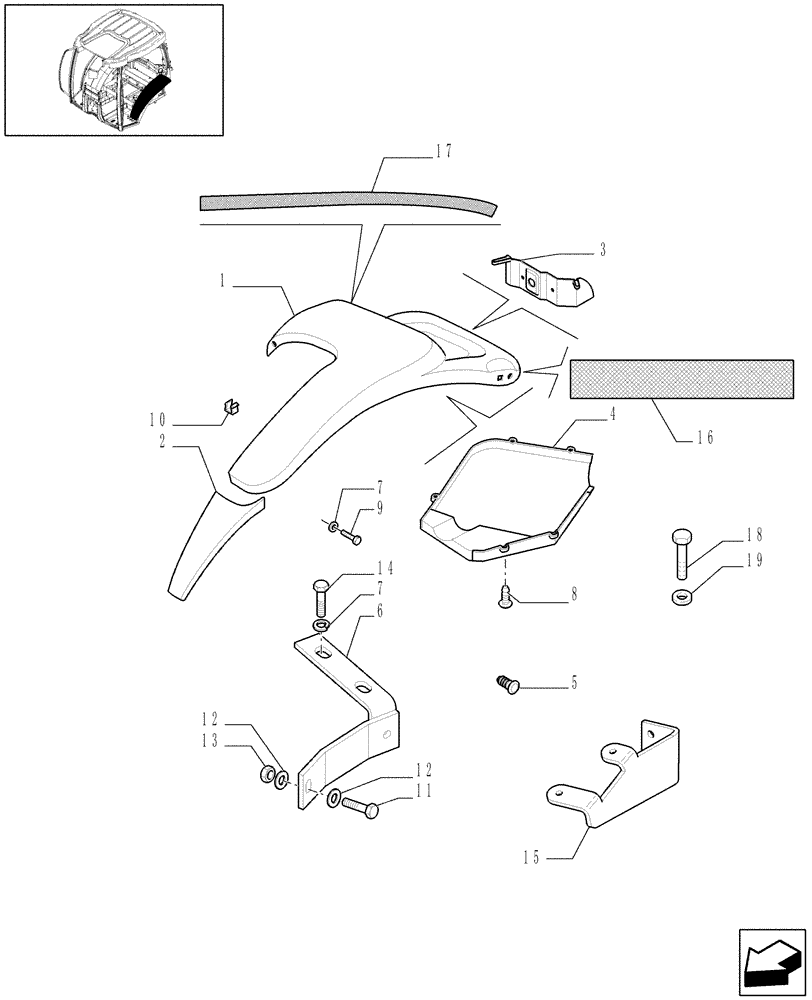

Запчасти Case IH PUMA 195 (1.92.5[01]) - REAR FENDERS - C6722 (10) - OPERATORS PLATFORM/CAB

1

87310409

REAR FENDER

LH

1шт.

1

87310410

REAR FENDER

RH

1шт.

2

82038501

REAR FENDER

LH

1шт.

2

82038500

REAR FENDER

RH

1шт.

3

82032773

COVER

LH

1шт.

3

82032772

COVER

RH

1шт.

4

87304236

SUPPORT

LH

1шт.

4

87304235

SUPPORT

RH

1шт.

5

81870039

FASTENER,M8 x 1.5 x 22mm

4шт.

6

82037053

SUPPORT

LH

1шт.

6

82037051

SUPPORT

RH

1шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

20шт.

8

87352109

SCREW,Phillips Drive, Pan HD, M10 x 50mm

50X10

20шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

10шт.

10

82010838

SPRING CLIP,0.5mm Thk

6шт.

11

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

2шт.

12

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

13

15896211

NUT,M6, Cl 8

2шт.

14

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

15

82038220

BRACKET

LH, VAR.181,181/1

1шт.

15

82038222

BRACKET

RH, VAR.181,181/1

1шт.

16

87529851

DECAL

Reflector, Serial Range: -ZABH05489

2шт.

16

84249298

DECAL

Reflector, Start Serial: ZABH05490

2шт.

17

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

LH, VAR. 007

1шт.

17

87529853

DECAL

RH, VAR. 007

1шт.

18

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

19

12628901

WASHER,8.15mm ID x 25mm OD x 4mm Thk

2шт.
