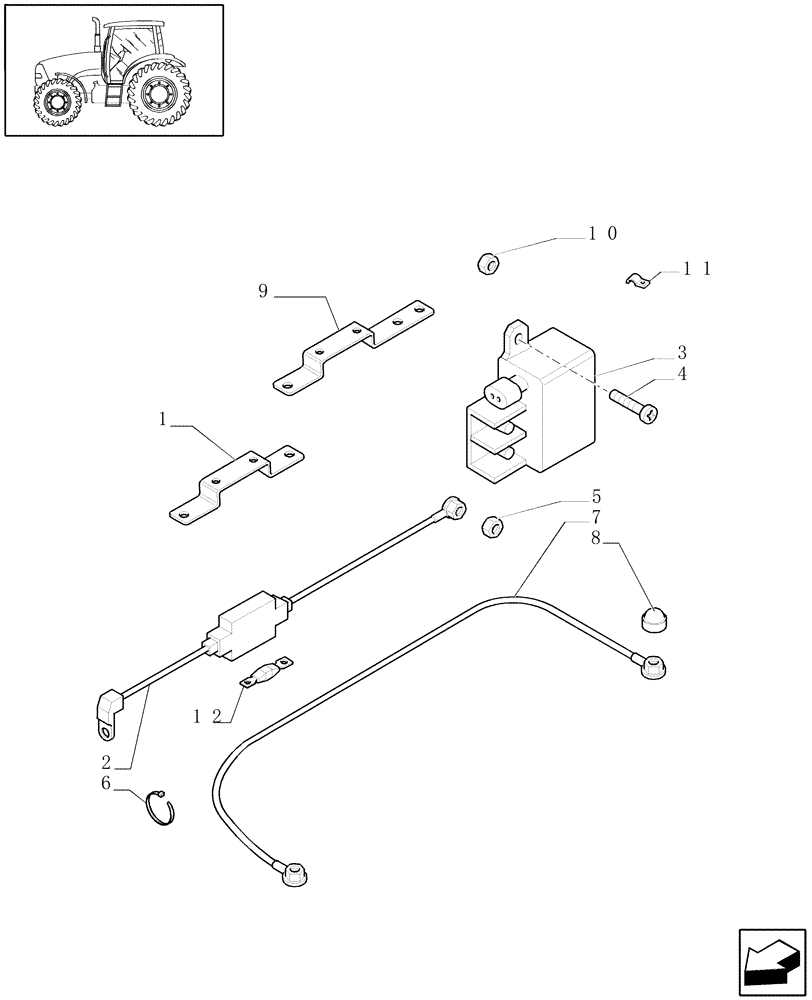

Запчасти Case IH PUMA 195 (1.91.4/03) - (VAR.203) AIR HEATER AND RELAY CABLES (10) - OPERATORS PLATFORM/CAB

1

82037657

BRACKET

, Serial Range: -C5516

1шт.

2

82036889

WIRE HARNESS

Grid Heater, Incl.12, Serial Range: -ZABH01090

1шт.

2

84243701

WIRE HARNESS

Grid Heater, Incl.12, Start Serial: ZABH01091

1шт.

3

82022813

RELAY,12V, High Current

1шт.

4

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

2шт.

5

12574211

NUT,M6 x 1, Cl 8

2шт.

6

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

2шт.

7

82036464

ELECTRIC CABLE,650mm L

1шт.

8

87533425

COVER,M6

4шт.

9

87570805

BRACKET

, Start Serial: D5516

1шт.

10

15896211

NUT,M6, Cl 8

, Start Serial: D5516

1шт.

11

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

, Start Serial: D5516

1шт.

12

11056290

FUSE,125A, Maxi

1шт.
