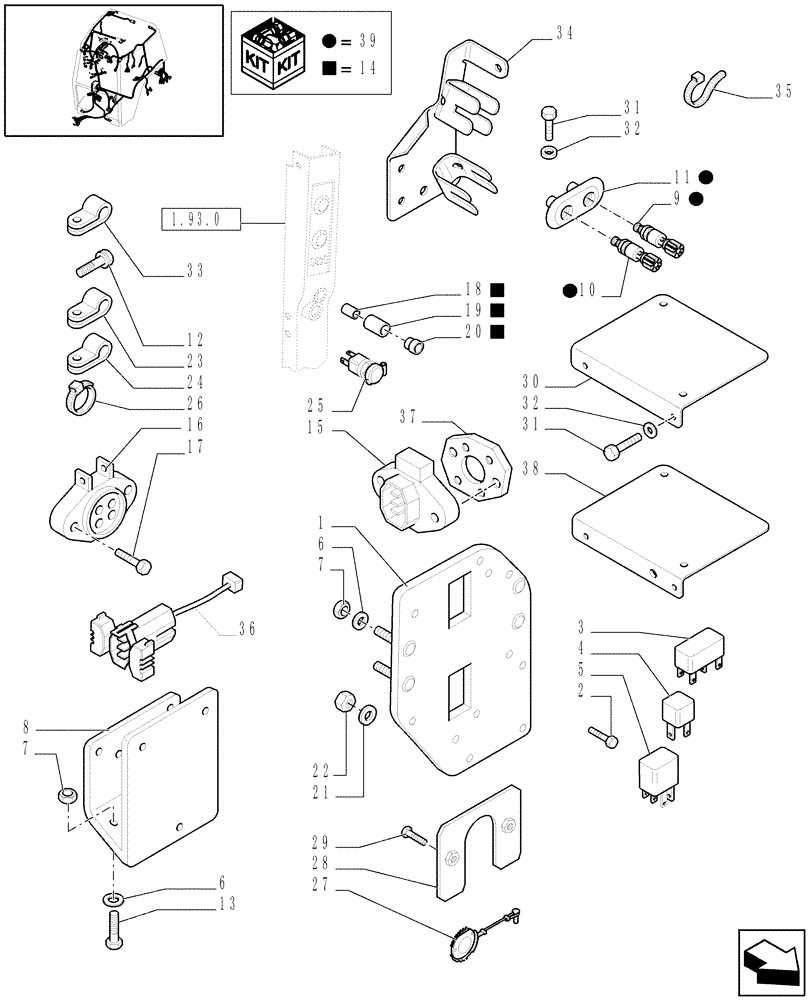

Запчасти Case IH PUMA 195 (1.91.4[09]) - SUPPORT FOR RELAY BOX, RELAY, POWER SOCKET AND SWITCHES (10) - OPERATORS PLATFORM/CAB

1

87325625

SUPPORT

1шт.

2

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

1шт.

3

87304226

RELAY,12V, Combined, Black

1шт.

4

82013124

RELAY,12V, 30A

4шт.

4

82030798

RELAY,12V, 70A

2шт.

5

82023238

RELAY,12V, 20A

6шт.

6

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

8шт.

7

15896211

NUT,M6, Cl 8

8шт.

8

87314581

BRACKET

1шт.

9

82003172

TERMINAL CONNECTOR

1шт.

10

82003171

TERMINAL CONNECTOR

1шт.

11

82003173

BEZEL

1шт.

12

83929012

CAPTIVE WASHER SCREW,HWH, M6.3 x 1.8 x 20mm

2шт.

13

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

14

5148077

CIGARETTE LIGHTER

Includes Ref. 18, 19, 20

2шт.

15

82029732

POWER SOCKET

Includes Ref. 14

1шт.

16

83982634

POWER SOCKET

1шт.

17

83912337

SELF-TAP SCREW,3.5mm OD x 1.3mm Thd x 22mm L

2шт.

18

5148133

CIGARETTE LIGHTER

1шт.

19

5148132

LAMP SOCKET

1шт.

20

5148131

HOUSING

1шт.

21

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

22

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

6шт.

23

82029731

CLIP

1шт.

24

87547970

CLAMP,28.6mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

25

84191453

SOCKET,12/24V, 20A

1шт.

26

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

3шт.

27

87316393

CAP

1шт.

28

87313993

HOLDER

1шт.

29

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

2шт.

30

87325630

SUPPORT

, Serial Range: -C6491

1шт.

W/Equip. 636, Fast Steer

1шт.

31

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

3шт.

32

14496404

WASHER,M6 x 12 x 2 Thk

3шт.

33

87547970

CLAMP,28.6mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

34

87597230

SUPPORT

1шт.

35

14560287

CABLE TIE,207.00mm L

COLLAR

3шт.

36

87563243

POWER SOCKET

, Serial Range: D5589-C5870

1шт.

36

87709921

POWER SOCKET

, Start Serial: D5870

1шт.

37

87680714

GASKET,3mm Thk

30A

1шт.

38

84237749

SUPPORT

, Start Serial: D6491

1шт.

39

84266120

SOCKET,12V

1шт.
