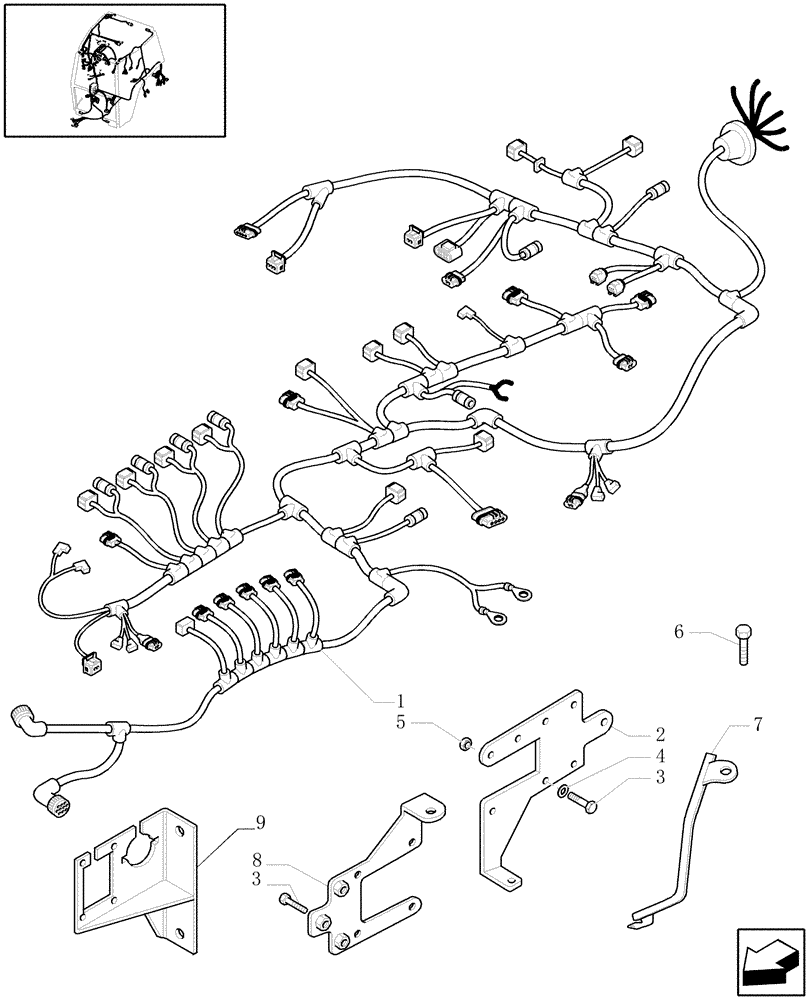

Запчасти Case IH PUMA 195 (1.91.4[06]) - CABLE EXTENSION (10) - OPERATORS PLATFORM/CAB

1

87649708

WIRE HARNESS

, Serial Range: -C6643

1шт.

W/Equip. 012 - 015 - 097 - 252 - 613 - 683 - 718 - 846, Full Powershift W/EHR & ISO BUS

1шт.

W/Equip. 165-166

1шт.

1

87740580

WIRE HARNESS

, Serial Range: D6643-C6644

1шт.

W/Equip. 012 - 015 - 097 - 252 - 613 - 683 - 718 - 846, Full Powershift W/EHR & ISO BUS

1шт.

W/Equip. 165-166

1шт.

1

84135523

WIRE HARNESS

, Serial Range: D6644-C6640

1шт.

W/Equip. 012 - 015 - 097 - 252 - 613 - 683 - 718 - 846, Full Powershift W/EHR & ISO BUS

1шт.

W/Equip. 165-166

1шт.

1

84176363

WIRE HARNESS

, Start Serial: D6640

1шт.

W/Equip. 012 - 015 - 097 - 252 - 613 - 683 - 718 - 846, Full Powershift W/EHR & ISO BUS

1шт.

W/Equip. 165-166

1шт.

1

87707403

WIRE HARNESS

, Serial Range: -C6099

1шт.

Full Powershift, LWB

1шт.

1

87740579

WIRE HARNESS

, Serial Range: D6096-C6097

1шт.

Full Powershift, LWB

1шт.

1

84135517

WIRE HARNESS

, Serial Range: D6097-C6640

1шт.

Full Powershift, LWB

1шт.

1

84176360

WIRE HARNESS

, Start Serial: D6640

1шт.

Full Powershift, LWB

1шт.

2

87529895

BRACKET

, Serial Range: -C5580

1шт.

W/Equip. 613, Full Powershift W/EHR & ISO BUS

1шт.

W/Equip. 015, Full Powershift W/EHR & ISO BUS

1шт.

3

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

3шт.

W/Equip. 613, Full Powershift W/EHR & ISO BUS

1шт.

W/Equip. 015, Full Powershift W/EHR & ISO BUS

1шт.

4

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

, Serial Range: -C5580

3шт.

W/Equip. 015, Full Powershift W/EHR & ISO BUS

1шт.

5

15896211

NUT,M6, Cl 8

, Serial Range: -C5580

3шт.

W/Equip. 015, Full Powershift W/EHR & ISO BUS

1шт.

6

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

7

87624045

TUBE

PTO Wire Protection

1шт.

W/Equip. 015 - 252 - 613 - 683 -718 - 846

1шт.

8

87598402

BRACKET

, Serial Range: D5580-C6470

1шт.

W/Equip. 613, Full Powershift W/EHR & ISO BUS

1шт.

W/Equip. 015, Full Powershift W/EHR & ISO BUS

1шт.

9

84167089

SUPPORT

, Start Serial: D6470

1шт.

W/Equip.012-131/1-613, Virtual Terminal

1шт.
