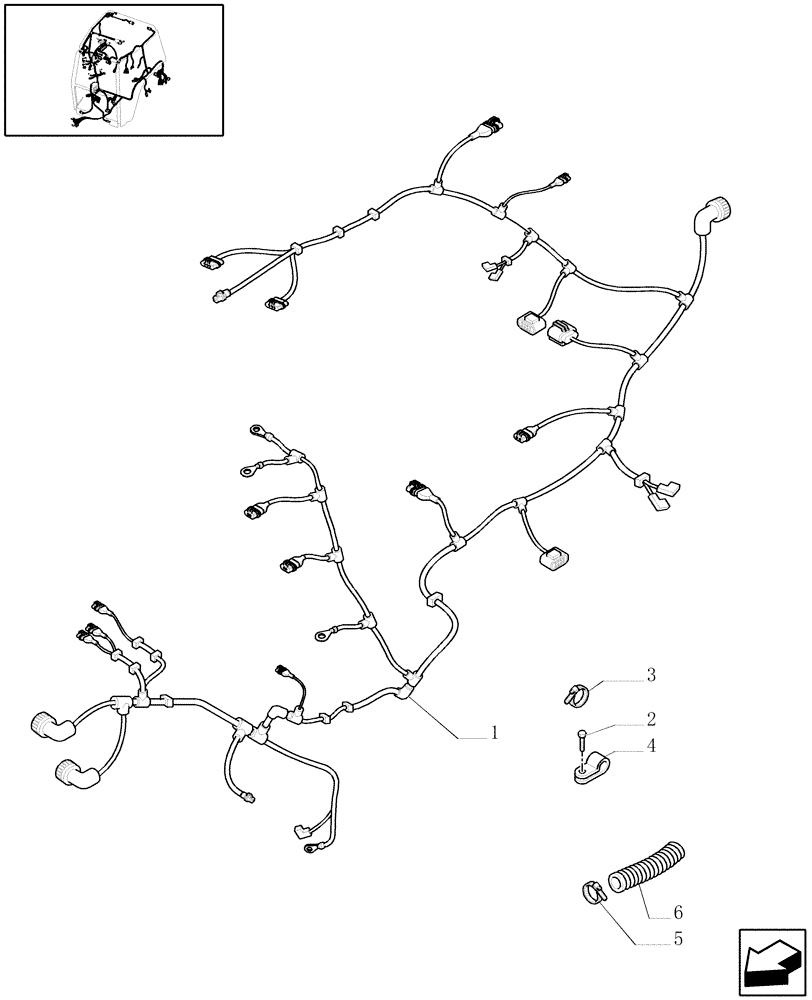

Запчасти Case IH PUMA 195 (1.91.4[03]) - FRONT MAIN CABLE (10) - OPERATORS PLATFORM/CAB

1

87659505

WIRE HARNESS

Engine, Serial Range: -C6094

1шт.

1

84129301

WIRE HARNESS

Engine, Serial Range: D6094-C6248

1шт.

1

84158559

WIRE HARNESS

Engine, Serial Range: D6248-C6541

1шт.

1

84212267

WIRE HARNESS

Engine, Start Serial: D6541

1шт.

2

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

2

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

3

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

4

87547970

CLAMP,28.6mm, Coat, 13.5mm Bolt Hole, P Type

D= 26

3шт.

5

83933061

STRAP

2шт.

6

87668898

FLEXIBLE SHEATH

L=400mm

1шт.
