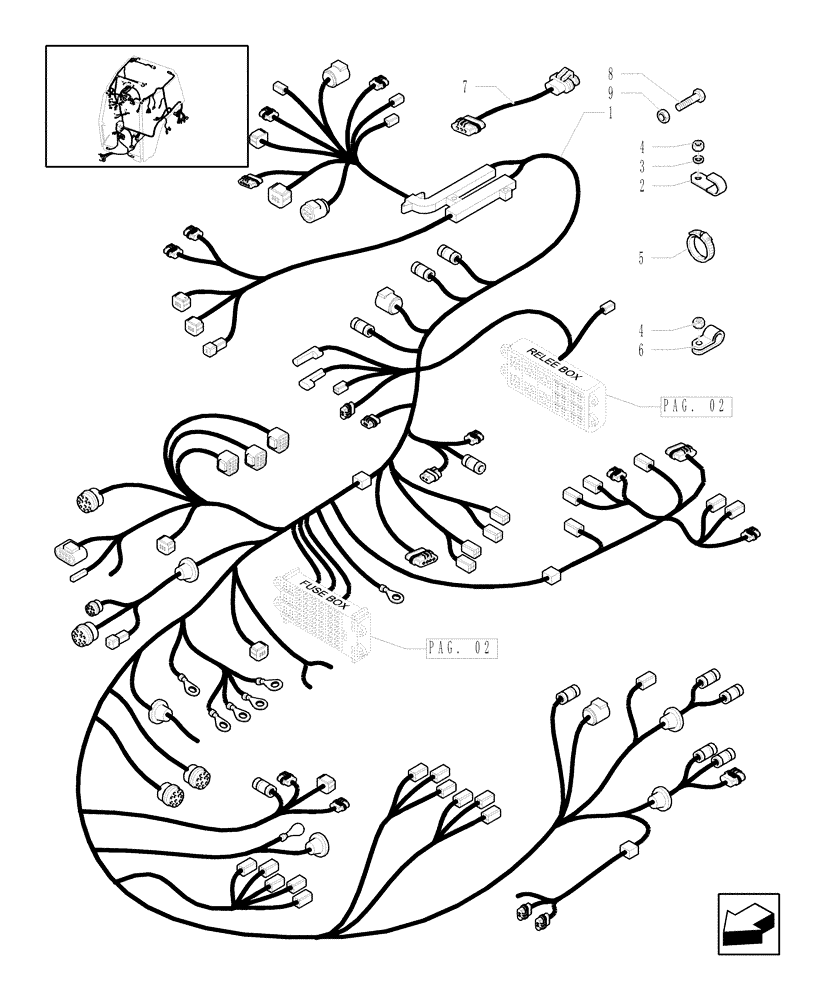

Запчасти Case IH PUMA 195 (1.91.4[01]) - REAR MAIN CABLE - C6467 (10) - OPERATORS PLATFORM/CAB

1

87602109

WIRE HARNESS

, Serial Range: -C5747

1шт.

1

87655808

WIRE HARNESS

, Serial Range: D5747-Z8BH05795

1шт.

1

87702424

WIRE HARNESS

, Start Serial: Z8BH05796

1шт.

1

87602110

WIRE HARNESS

, Serial Range: -C5747

1шт.

W/Equip. 015, Powershift W/EHR & ISO BUS

1шт.

1

87655809

WIRE HARNESS

, Serial Range: D5747-Z8BH05795

1шт.

W/Equip. 015, Powershift W/EHR & ISO BUS

1шт.

1

87702422

WIRE HARNESS

, Start Serial: Z8BH05796

1шт.

W/Equip. 015, Full Powershift W/EHR & ISO BUS

1шт.

W/Equip. 165-166

1шт.

2

5171792

CLAMP

1шт.

3

82879382

WASHER

1шт.

4

83958007

NUT,M8, G8

2шт.

5

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

2шт.

5

82013031

CABLE TIE,193mm L

CABLE STRAP

3шт.

6

87547970

CLAMP,28.6mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

7

82036826

ELECTRIC CABLE

1шт.

8

10978021

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

2шт.

9

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

2шт.
