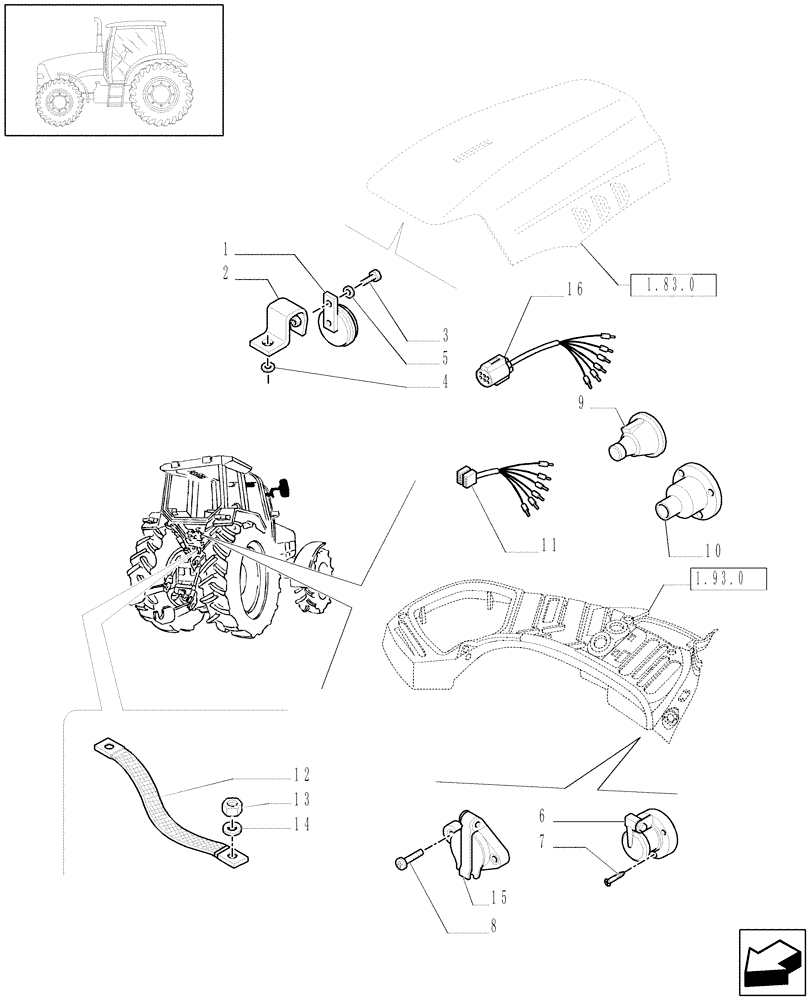

Запчасти Case IH PUMA 195 (1.91.1[04]) - ELECTRIC SYSTEM, HORN & HORN MOUNTING (10) - OPERATORS PLATFORM/CAB

1

82000694

HORN

Includes Ref. 2, Serial Range: -C5428

1шт.

1

87551747

HORN,12V

, Start Serial: D5428

1шт.

2

82001658

BRACKET

1шт.

3

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

4

10516474

LOCK WASHER

D=6

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

6

83959716

POWER SOCKET,7 Pins

1шт.

7

260-14524

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

3шт.

8

83986375

SELF-TAP SCREW

2шт.

9

83990207

BOOT

1шт.

10

82013268

BOOT

1шт.

11

82037899

WIRE HARNESS

, Serial Range: -C5999

1шт.

W/Equip. 087, 088, 089, 090, 091 4WD Models

1шт.

12

87377887

CABLE,650mm L

1шт.

13

12164015

NUT

1шт.

14

12644905

WASHER,14.4mm ID x 32mm OD x 4mm Thk

1шт.

15

82001021

POWER SOCKET,7 Pins

1шт.

W/Equip. 007

1шт.

16

87749128

WIRE HARNESS

, Start Serial: D5999

1шт.

W/Equip. 087, 088, 089, 090, 091 4WD Models

1шт.
