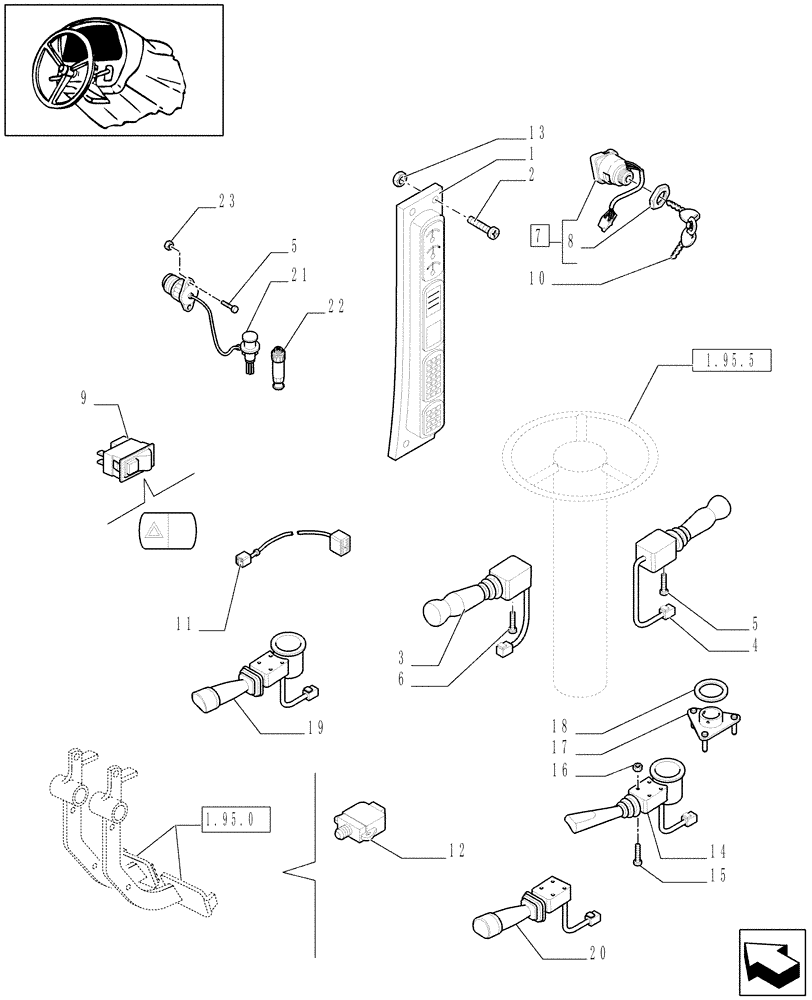

Запчасти Case IH PUMA 195 (1.91.1[01]) - INSTRUMENT CLUSTER - ANALOGUE/DIGITAL AND SWITCH TOGGLE (10) - OPERATORS PLATFORM/CAB

1

87668327

INSTRUMENT CLUSTER

1шт.

1

87668329

INSTRUMENT CLUSTER

1шт.

W/Equip. 725, tractor performance monitor - enhance key pads

1шт.

1

84176022R

REMAN-INSTR CLUSTER

Reman for New PN 87668329

1шт.

1

84176022C

CORE-CLUSTER, INSTR

Return Number

1шт.

87668329C

CORE-CLUSTER, INSTR

CORE-INSTRUMENT CLUSTER Return Number, INSTRUMENT CLUSTER - for N.A. Only

1шт.

87661278C

CORE-CLUSTER, INSTR

CORE-INSTRUMENT CLUSTER Return Number, INSTRUMENT CLUSTER - for N.A. Only

1шт.

87517265C

CORE-CLUSTER, INSTR

CORE-INSTRUMENT CLUSTER Return Number, INSTRUMENT CLUSTER - for N.A. Only

1шт.

2

13272417

SCREW,Pozidriv Pan Hd, M4 x 20mm, Cl 5.8, Full Thd

, Serial Range: -C5998

4шт.

2

190003840010

SCREW,M4.2 x 22mm

M4.2 x 22, Start Serial: D5998

4шт.

3

87570887

SWITCH ASSY

Flasher/Headlights, Serial Range: -Z8BH15287

1шт.

4

87544514

SWITCH ASSY

Wash/Wipe, Serial Range: -ZABH03626

1шт.

4

87733125

SWITCH ASSY

Wash/Wipe, Start Serial: ZABH03627

1шт.

5

83912337

SELF-TAP SCREW,3.5mm OD x 1.3mm Thd x 22mm L

6 x 22

5шт.

6

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

3шт.

7

87561528

SWITCH ASSY

Ignition, Includes Ref. 8

1шт.

8

81864297

NUT,M26 x 1.5

1шт.

9

82037364

SWITCH ASSY

Hazard Warning

1шт.

10

82030144

IGNITION KEY

2шт.

11

82035386

WIRE HARNESS

1шт.

12

82026949

PUSH BUTTON SWITCH

Brake

3шт.

13

83907635

NUT

, Serial Range: -C5998

4шт.

13

83935425

SPRING NUT,Prev Torque, #8

, Start Serial: D5998

4шт.

14

87623195

SWITCH ASSY

, Serial Range: -Z8BH15287

1шт.

W/Equip. 602, self cancelling turn indicators

1шт.

15

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

3шт.

15

83949904

SCREW,Pan, M4 x 10mm, Gr 4.8

3шт.

W/Equip. 602, self cancelling turn indicators

1шт.

16

10794011

NUT,M4, Cl 8

3шт.

W/Equip. 602, self cancelling turn indicators

1шт.

17

87576988

ACTUATOR

, Serial Range: -C5770

1шт.

W/Equip. 602, self cancelling turn indicators

1шт.

17

87678850

ACTUATOR

, Start Serial: D5770

1шт.

W/Equip. 602, self cancelling turn indicators

1шт.

18

87578724

SPACER

, Serial Range: -C5770

1шт.

W/Equip. 602, self cancelling turn indicators

1шт.

19

87756698

SWITCH ASSY

, Serial Range: Z8BH15288-ZABH03626

1шт.

19

87490159

SWITCH ASSY

, Start Serial: ZABH03627

1шт.

20

87756692

SWITCH ASSY

, Serial Range: Z8BH15288-ZABH03626

1шт.

W/Equip. 602, self cancelling turn indicators

1шт.

20

87733123

SWITCH ASSY

, Start Serial: ZABH03627

1шт.

W/Equip. 602, self cancelling turn indicators

1шт.

21

87345189

WIRE HARNESS

ELECTRIC CABLE

1шт.

W/Equip. 725, tractor performance monitor - enhance key pads

1шт.

22

87304492

ELEC CONNECTOR

1шт.

23

16101711

NUT,M3, Cl 8

2шт.
