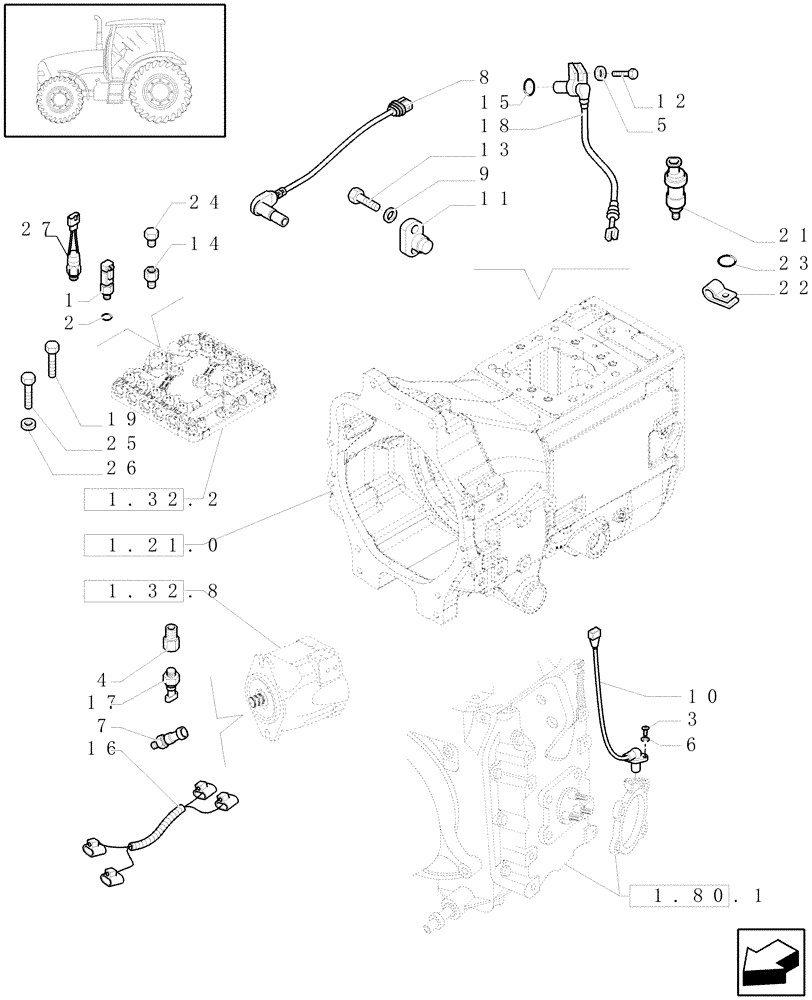

Запчасти Case IH PUMA 195 (1.91.0[01]) - ELECTRIC SYSTEM CONTROL (10) - OPERATORS PLATFORM/CAB

1

87564683

PRESSURE SWITCH,M14 x 1.5

, Serial Range: -C6249

4шт.

2

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

3

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

2шт.

4

81866305

ADAPTER,1/4" NPT x M10 x 1 ORB

1шт.

5

10615476

LOCK WASHER,Ext Tooth, M6

2шт.

6

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

7

82028134

SWITCH ASSY

Oil Temperature

1шт.

8

87564761

SENSOR

Inductive Speed

3шт.

9

12605379

LOCK WASHER

2шт.

10

87586073

SENSOR

PTO Speed Std.

1шт.

11

5171837

PLUG,17.3mm ID x 42mm OD x 7.5mm Thk

1шт.

12

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

6шт.

13

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

2шт.

14

82008236

SWITCH ASSY

1шт.

15

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

1шт.

16

87386975

WIRE HARNESS

HPL Pump (Closed Ctr)

1шт.

17

87564684

SWITCH ASSY

Oil Pressure

1шт.

18

84169162

SENSOR

Speed, Hall Effect, High Sens

2шт.

19

16207524

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

20

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

21

82025340

RESTRICTION SWITCH

Vacuum

1шт.

22

81866030

CLIP

2шт.

23

12605271

WASHER

2шт.

24

82851791

PLUG

1шт.

25

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

26

10260960

SEALING WASHER,M10.2 x 14 x 1.5

1шт.

27

87494226

PRESSURE SWITCH

, Start Serial: D6249

4шт.
