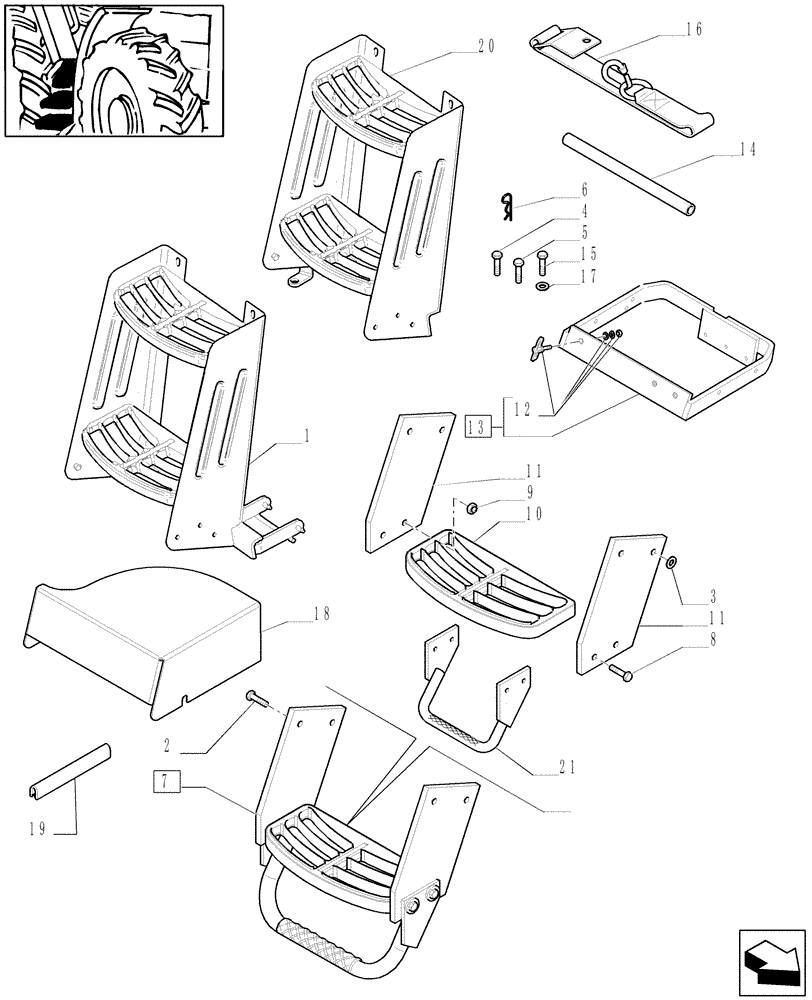

Запчасти Case IH PUMA 195 (1.90.2) - FOOT STEP (10) - OPERATORS PLATFORM/CAB

1

87565416

FOOT BOARD

RH, Serial Range: -C5653

1шт.

1

87565410

FOOT BOARD

LH, Serial Range: -C5653

1шт.

1

87603566

FOOT BOARD

LH, Serial Range: D5653-C6297

1шт.

1

87604005

FOOT BOARD

RH, Serial Range: D5653-C6297

1шт.

1

87483119

FOOT BOARD

, Start Serial: D6297

1шт.

2

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

4шт.

3

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

8шт.

4

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

5

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

6

81865839

COTTER PIN

2шт.

7

87565407

FOOT BOARD

Includes Ref. 8, 9, 10, 11, 3 (Q.ty 4)

2шт.

8

11107024

BOLT,Hex, M10 x 45mm, Cl 8.8

8шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

9шт.

10

87371923

STEP

Rubber Step

2шт.

11

87305561

SUPPORT

4шт.

12

87389066

FASTENER

2шт.

13

87566675

RETAINER

Includes Ref. 12

1шт.

13

87483105

RETAINER

1шт.

14

82037481

BAR

, Serial Range: -C5939

1шт.

14

87756126

BAR

, Start Serial: D5939

1шт.

15

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

15

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

87568642

SECURING STRAP

1шт.

17

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

3шт.

18

87595990

COVER

, Serial Range: -C5797

1шт.

18

87667181

COVER

, Start Serial: D5797

1шт.

19

87710638

MOLDING

154-156MM

1шт.

19

87710627

MOLDING

60-65MM

1шт.

20

87483113

FOOT BOARD

, Start Serial: D6297

1шт.

21

87565423

FOOT BOARD

1шт.
