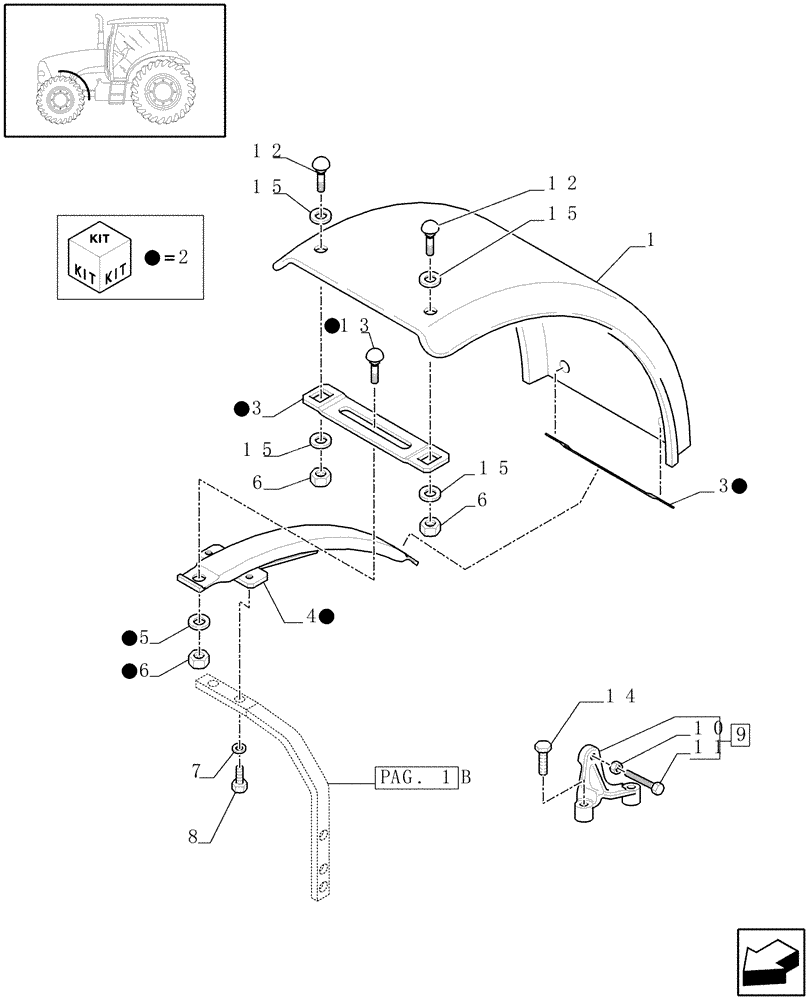

Запчасти Case IH PUMA 195 (1.87.4[02B]) - (VAR.497-575) DYNAMIC FRONT FENDERS - FENDERS AND BRACKETS - D6067 (08) - SHEET METAL

1

87579460

MUD DEFLECTOR

480MM

2шт.

1

87579461

MUD DEFLECTOR

620MM

2шт.

2

87745844

SUPPORT

2шт.

3

82021040

SUPPORT

4шт.

4

87747746

SUPPORT ASSY.

2шт.

5

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

12шт.

7

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

8

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

9

87475464

STOP

RH

1шт.

9

87475467

STOP

LH

1шт.

10

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

11

15215021

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

2шт.

12

13183201

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 4.8

8шт.

13

82021059

BOLT,Hex, M10 x 1.25 x 31mm

2шт.

14

15540721

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

4шт.

15

84145763

WASHER,14mm ID x 41.3mm OD x 2.64mm Thk

8шт.
