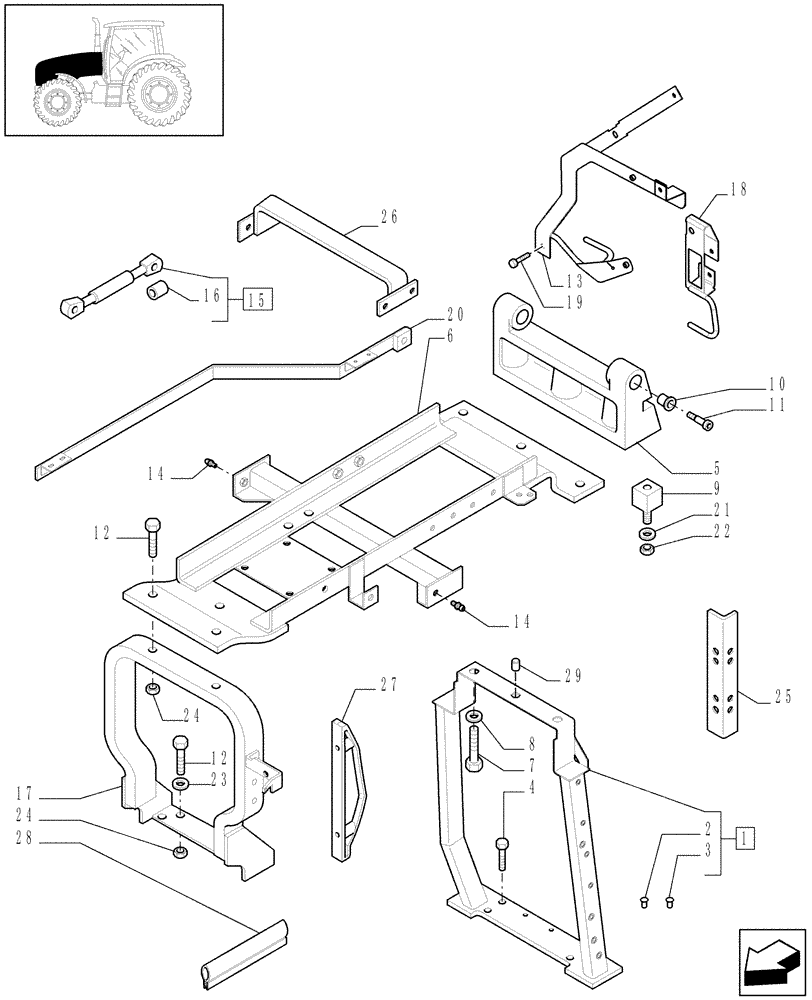

Запчасти Case IH PUMA 195 (1.83.0[03A]) - HOOD - D6745 (08) - SHEET METAL

1

87589656

SUPPORT

Includes Ref. 2, 3, 28

1шт.

2

15629111

RIVET,Flat, M8 OD x 17.5mm L

M8 X 17,5

7шт.

3

15628511

RIVET,Flat, M6 OD x 16mm L

M6 X 16

4шт.

4

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

5

82036797

HINGE

1шт.

6

87367846

CONSOLE

1шт.

7

11127521

BOLT,Hex, M16 x 35, 8.8

2шт.

8

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

9

82039047

ISOLATOR

6шт.

10

89846307

NYLON BEARING,.626" ID x .937" OD x 1.155" L

2шт.

11

89845583

BOLT,Hex, 26.05mm ID x 50.8mm L

2шт.

12

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

6шт.

13

87473441

SUPPORT

1шт.

14

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN

4шт.

15

82023977

GAS STRUT

Includes Ref. 16

2шт.

16

82019394

SEAL

4шт.

17

87655863

SUPPORT

1шт.

18

84290295

SUPPORT

1шт.

19

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

20

87580064

SUPPORT

RH

1шт.

20

87580065

SUPPORT

LH

1шт.

21

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

6шт.

22

15896211

NUT,M6, Cl 8

6шт.

23

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

24

11701711

NUT,Hex, M10, Cl 8, ZND

6шт.

25

87674163

HOLDER

2шт.

26

87571385

REINFORCEMENT

2шт.

27

87661307

GUIDE

2шт.

28

87601558

SEAL

2шт.

29

82006056

PIN,16mm OD x 40mm L

1шт.
