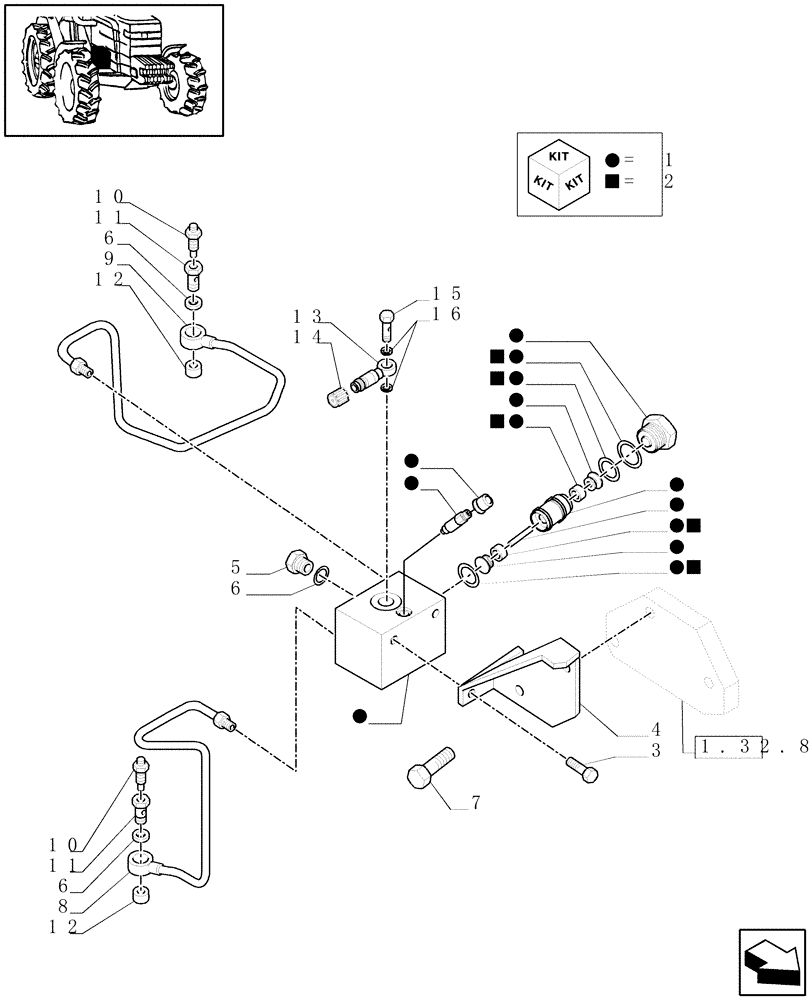

Запчасти Case IH PUMA 195 (1.82.7/12) - (VAR.396) TRAILER BRAKE LOGIC VALVE FOR CLOSED CENTRE LOAD SENSING (07) - HYDRAULIC SYSTEM

1

87323483

HEAD

Incl.2

1шт.

2

87323116

SEAL KIT

1шт.

3

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

4

87323097

BRACKET

1шт.

5

47131496

PLUG,Hex, M12 x 1

1.5x8

1шт.

6

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

3шт.

7

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

8x35

2шт.

7

14306521

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8

8x1.25x30

1шт.

8

87635543

HYDRAULIC HOSE

Right Brake

1шт.

9

87635545

HYDRAULIC HOSE,4.75mm ID x 820mm L

Left Brake

1шт.

10

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

11

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

12

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

13

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.

14

44995074

PLUG,M8 x 1.0

1шт.

15

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

16

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.
