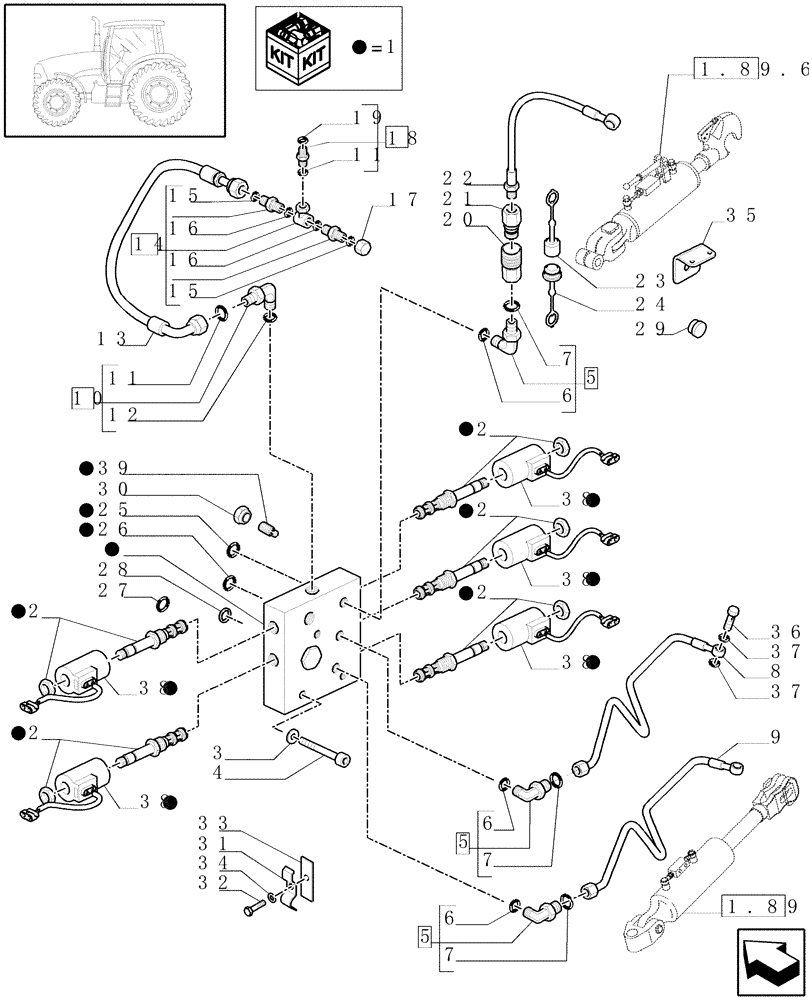

Запчасти Case IH PUMA 195 (1.82.7/11[01A]) - (VAR.484) RIGHT LIFT ROD AND TOP LINK HYD ADJUST W/ELEC CONTROL - PIPES - D5928 (07) - HYDRAULIC SYSTEM

1

87749159

SOLENOID VALVE,12V, 5.9 Ohm, 23W, 210 bar

INCL.2

1шт.

2

84194153

SOLENOID

5шт.

3

11193979

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

4

14359321

HEX SOC SCREW,M8 x 65mm, Cl 8.8

M8X65

3шт.

5

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

11/16", M16 x 1.5

3шт.

6

14437885

O-RING,13.30mm ID x 2.40mm

3шт.

7

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

3шт.

8

87396317

HYD TUBE,10 mm DIA

Upper

1шт.

9

87396319

PIPE

Lower

1шт.

10

47123008

ELBOW

9/16" -18, M12X1,5

1шт.

11

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

2шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

13

87302784

FLEXIBLE HOSE,6.4mm ID x 645mm L

645 mm lg

1шт.

14

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

15

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4

2шт.

16

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16

2шт.

17

5189973

PLUG

9/16"-18

1шт.

18

5185045

HYD CONNECTOR

9/16"-18, M12X1,5

1шт.

19

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

20

47123022

QUICK MALE COUPLING,26mm ID x 33.2mm OD x 62.5mm L, Female

1шт.

21

47123021

HALF-COUPLING

1шт.

22

47123016

HYDRAULIC HOSE

940 mm lg

1шт.

23

47123381

PLUG

250 mm lg

1шт.

24

47123380

PLUG

241 mm lg

1шт.

25

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

26

14458086

O-RING,1.112" ID x 0.103" Width

-122

1шт.

27

14458181

O-RING,29.82mm ID x 2.62" Width

1шт.

28

47127028

SEALING WASHER

16.5 x 22 x 1.5

1шт.

29

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.

30

47123020

PLUG,Hex

13/16

1шт.

30

83987627

CAP,1-14UN-2A

1шт.

31

4999554

CLAMP,2 Hoses

1шт.

31

85700613

CLAMP,1.75mm W x 0.20mm Thk

1шт.

32

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

1шт.

32

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

1шт.

33

87350829

MOUNTING PLATE

1шт.

34

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

1шт.

35

87528770

BRACKET

1шт.

36

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

2шт.

37

10278650

SPARE PART,M16 ID x 22mm OD x 1mm Thk

4шт.

38

87758490

COIL

5шт.

39

87749309

FLOW CONTROL VALVE

1шт.
