Запчасти Case IH PUMA 195 (1.82.7/06) - (VAR.846) 3 X ELECTRONIC REAR REMOTES (07) - HYDRAULIC SYSTEM

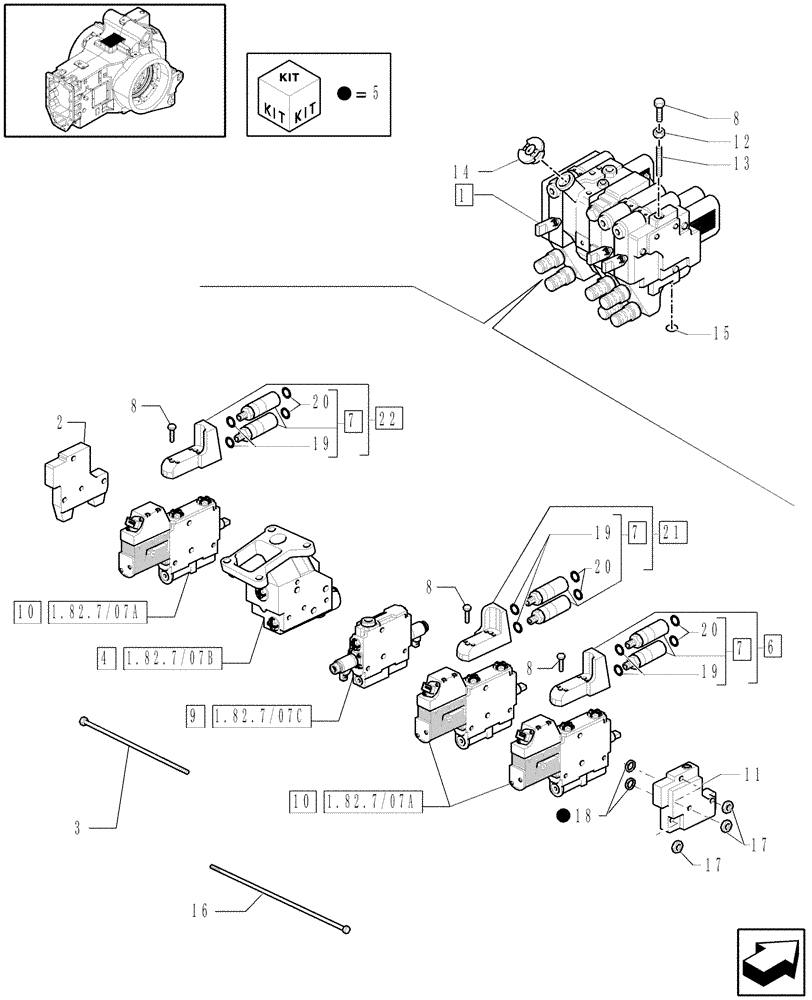

Схема запчастей Case IH PUMA 195 - (1.82.7/06) - (VAR.846) 3 X ELECTRONIC REAR REMOTES (07) - HYDRAULIC SYSTEM
16
5
1
20
5
1.82.7/07b
8
1.82.7/07c
20
10
15
8
14
10
8
20
21
7
8
17
4
19
9
2
7
19
3
19
1.82.7/07a
18
11
22
17
5
1.82.7/07a
13
12
6
7

Артикул

Название

Примечание

Количество

1

47136311

CONTROL VALVE

1шт.

2

5190710

PLATE

1шт.

3

16044831

SCREW,Hex, M8 x 80mm, Cl 10.9

3шт.

4

47136297

BODY

Assy.

1шт.

5

47126963

SEAL

1шт.

6

87381981

HYDRAULIC MANIFOLD

is faster 4bm10

1шт.

7

87381944

COUPLING, QUICK, FEM

1шт.

8

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

9

47136296

VALVE SECTION

Assy.

1шт.

10

47123179

HYD VALVE SECTION

Assy.

3шт.

84125295R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195, PUMA 210 all (1/07-) REMAN FOR NEW P/N 47123179

3шт.

84125295C

CORE-VALVE HYD

Return Number

1шт.

11

87317721

END PLATE

1шт.

12

12164711

NUT,M10 x 1.25, Cl 8

1шт.

13

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

2,5x18

2шт.

14

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

15

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

16

5195168

TIE-ROD,M8

3шт.

17

16100821

NUT,M8, Cl 10

3шт.

18

5195150

BACK-UP RING

2шт.

19

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

20

87382012

SEAL KIT

6шт.

21

87381982

HYDRAULIC MANIFOLD

is faster 4bm11

1шт.

22

87381983

HYDRAULIC MANIFOLD

is faster 4bm12

1шт.

Выбрано товаров: 24
