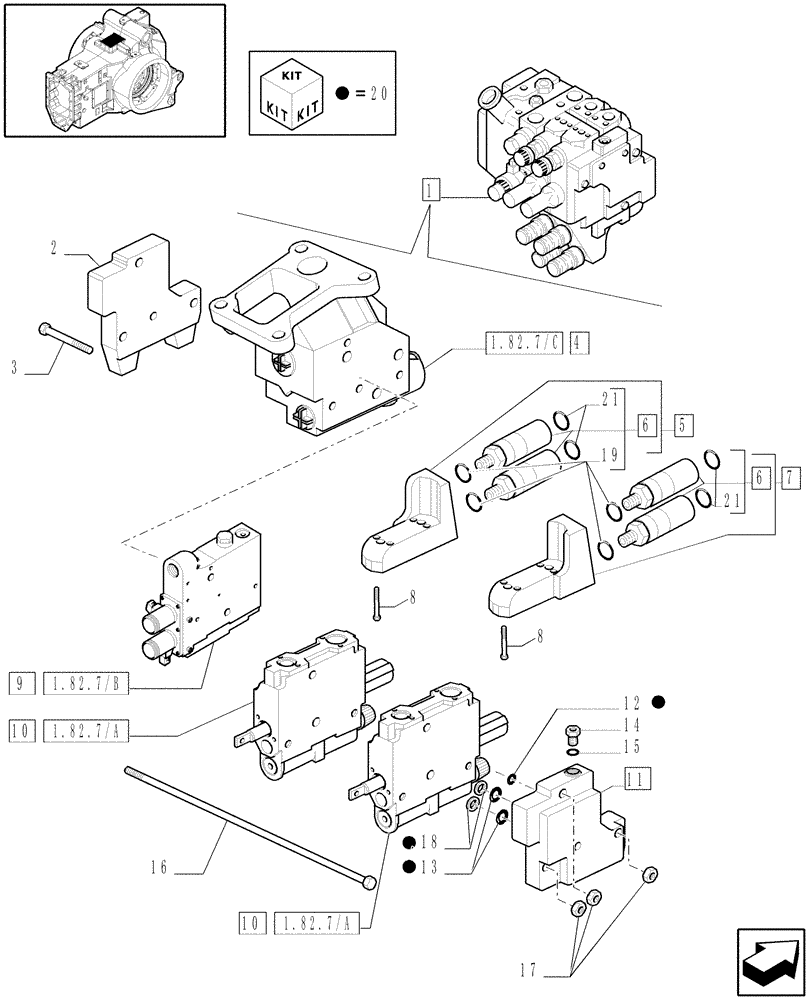

Запчасти Case IH PUMA 195 (1.82.7[02]) - EXTRA CONTROL VALVES AND PIPES (07) - HYDRAULIC SYSTEM

1

47136307

CONTROL VALVE

1шт.

2

5190710

PLATE

1шт.

3

5191664

SCREW

3шт.

4

47136304

BODY

1шт.

5

87381981

HYDRAULIC MANIFOLD

is faster 4bm10

1шт.

6

87381944

COUPLING, QUICK, FEM

Includes Ref. 19

4шт.

7

87381982

HYDRAULIC MANIFOLD

is faster 4bm11

1шт.

8

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

8шт.

9

47136333

CONTROL VALVE

1шт.

10

87526168

VALVE SECTION,Control, SB23-LS

ASSY

2шт.

10

87526168R

REMAN-HYD VALVE

Reman for New P/N 87526168

2шт.

10

87526168C

CORE-VALVE HYD

Return Number

2шт.

11

5195157

COVER

Incl. 12, 13, 18

1шт.

12

81862872

O-RING,2.4mm Thk x 19.6mm ID

2,5X20

1шт.

13

5190751

O-RING,2.5mm Thk x 18mm ID

18 x 2.5

2шт.

14

5191704

CHECK VALVE

Non-Return Valve

1шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

16

5195168

TIE-ROD,M8

3шт.

17

16100821

NUT,M8, Cl 10

3шт.

18

5195150

BACK-UP RING

2шт.

19

14438085

O-RING,19.3mm ID x 2.4mm

4шт.

20

47126963

SEAL

1шт.

21

87382012

SEAL KIT

4шт.
