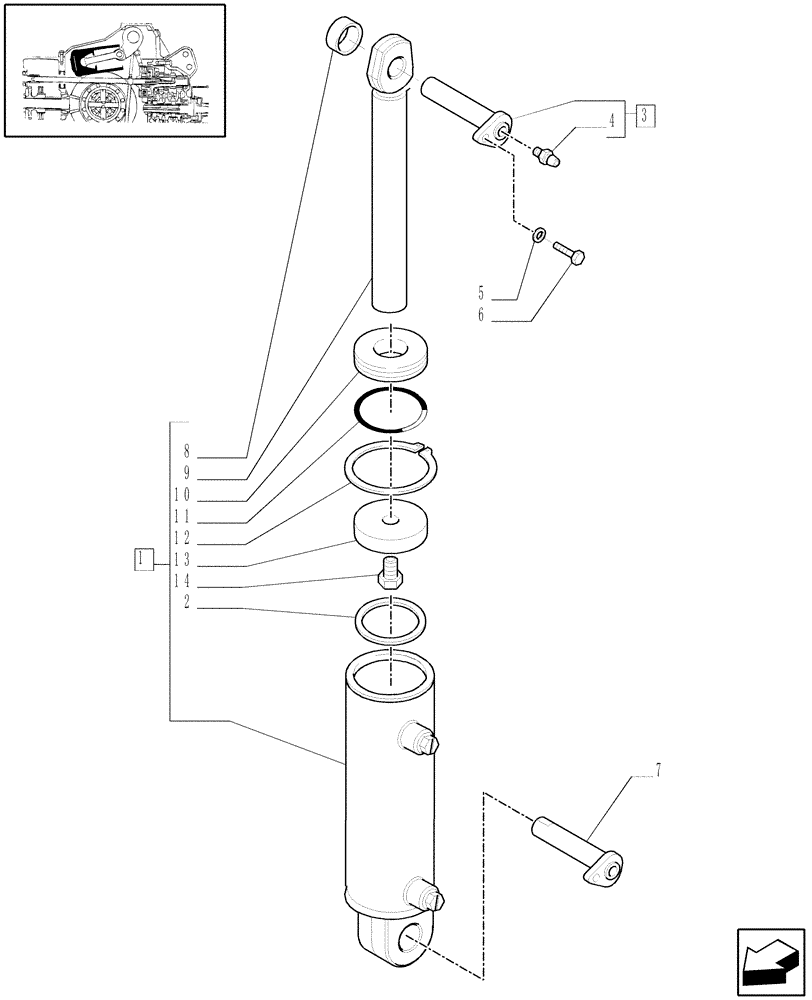

Запчасти Case IH PUMA 195 (1.82.6/02) - (VAR.047) HYDRAULIC POWER LIFT WITH 2 (110MM) EXTERNAL CYLINDERS - CYLINDER AND PINS (07) - HYDRAULIC SYSTEM

1

87521075

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 200mm Stroke

2шт.

2

87532092

SEAL KIT

1шт.

3

5186171

PIN

2шт.

4

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

5

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

6

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

4шт.

7

5185964

PIN,34.7mm OD x 132mm L

2,62X15,54

2шт.

8

5198652

BUSHING

2шт.

9

87532114

PISTON ROD

1шт.

10

87532115

JACK HEAD

1шт.

11

87532106

SNAP RING

1шт.

12

87532094

RING

1шт.

13

87532107

JACK PISTON

1шт.

14

86962437

1шт.
