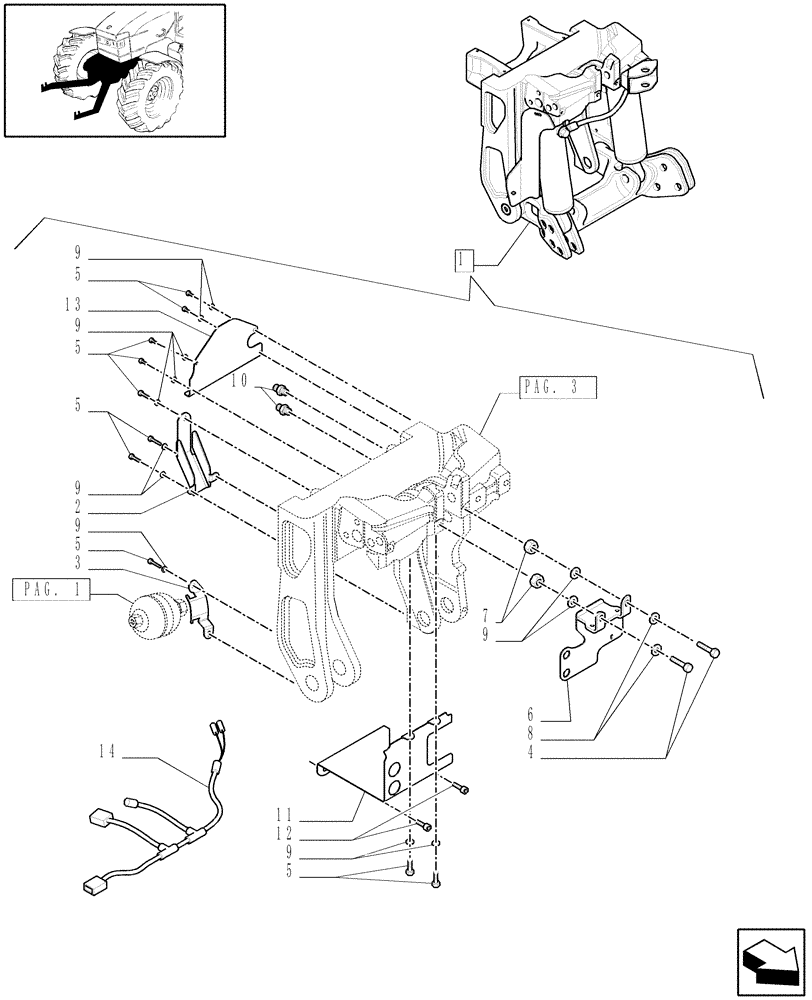

Запчасти Case IH PUMA 195 (1.81.9/01[05]) - (VAR.090) FRONT HPL FOR MID MOUNT REMOTES LESS PTO, WITH AUX. COUPLERS - BRACKETS - D5688 - C6726 (07) - HYDRAULIC SYSTEM

1

NSS

NOT SOLD SEPARAT

ASSY

1шт.

2

87644590

COVER

1шт.

3

87645449

BRACKET

1шт.

4

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

5

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

9шт.

6

87684033

SUPPORT

1шт.

7

9706690

NUT,M8 x 1.25, Cl 8

2шт.

8

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

2шт.

9

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

13шт.

10

87687701

HYD CONNECTOR

2шт.

11

87676926

COVER

1шт.

12

87706765

HEX SOC SCREW,M14 x 30mm, Cl 8.8

2шт.

13

87688327

COVER

1шт.

14

87706718

HARNESS

1шт.
