Запчасти Case IH PUMA 195 (1.80.1[06]) - POWER TAKE-OFF 540E/1000 RPM (07) - HYDRAULIC SYSTEM

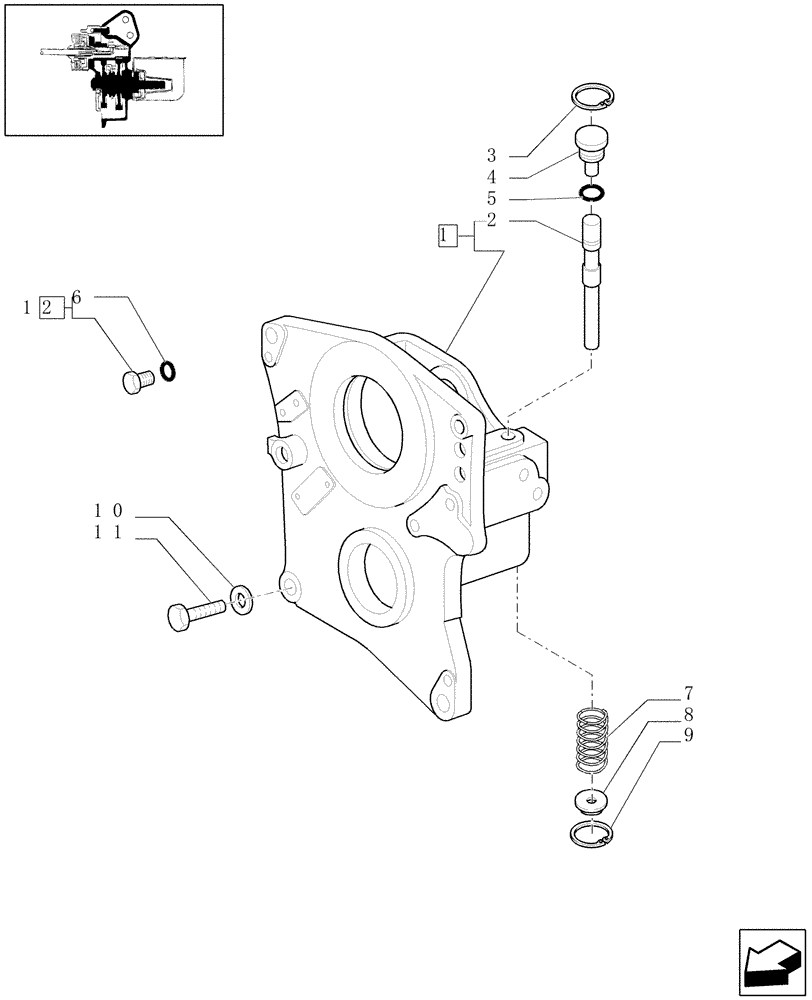

Схема запчастей Case IH PUMA 195 - (1.80.1[06]) - POWER TAKE-OFF 540E/1000 RPM (07) - HYDRAULIC SYSTEM
2
3
10
11
4
8
1
12
9
7
6
5

Артикул

Название

Примечание

Количество

1

47132140

SUPPORT

Includes Ref. 2, Serial Range: -C5581

1шт.

1

87621604

SUPPORT

ASSY, Serial Range: D5581-C5944

1шт.

1

87592697

SUPPORT

, Start Serial: D5944

1шт.

2

47128616

VALVE

1шт.

3

47127897

SNAP RING,M21.5, Ext

1шт.

4

5196030

PIN,20mm OD x 16.5mm L

1шт.

5

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

6

14437585

O-RING,8.00mm ID x 1.50mm

2шт.

7

47123788

SPRING,15mm OD x 87.5mm L

1шт.

8

47127951

CAP COVER

1шт.

9

13420576

SNAP RING,M16, Int

1шт.

10

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

11

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

4шт.

12

10118540

PLUG,M10 x 1 x 11, Brass

Includes Ref. 6

2шт.

Выбрано товаров: 14
