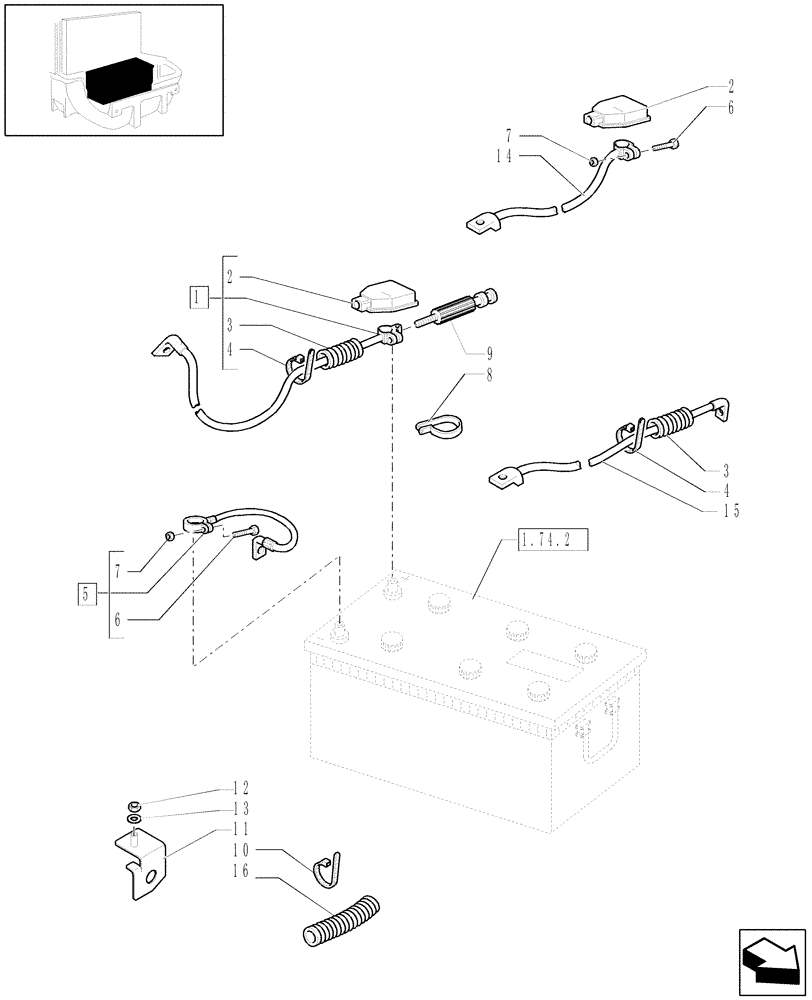

Запчасти Case IH PUMA 195 (1.75.3) - BATTERY, CABLES (06) - ELECTRICAL SYSTEMS

1

87324238

POS BATTERY CABLE,1290mm L

L=MM.1290, Includes Ref. 2 To 4, BATTERY TO STARTER MOTOR

1шт.

2

81867524

PROTECTION CAP

1шт.

3

82918747

SHIELD

L=MM.650

1шт.

4

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

3шт.

5

87391337

NEG BATTERY CABLE

L=MM.970, Includes Ref. 6, 7

1шт.

6

81869762

BOLT

1шт.

7

82879527

NUT,Hex, M8

M8

1шт.

8

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

5/16" x 14-1/2"

1шт.

9

82028966

TERMINAL CONNECTOR,M10 x 1.5, CL 8.8

1шт.

10

83933061

STRAP

3шт.

11

87305289

BRACKET

1шт.

12

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

13

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

14

87576880

ELECTRIC CABLE

, Serial Range: -C6725

1шт.

W/Equip. 752 Eletrically controlled Battery Isolator

1шт.

14

84249202

WIRE HARNESS

, Start Serial: D6725

1шт.

W/Equip. 752 Eletrically controlled Battery Isolator

1шт.

15

87305175

TERMINAL

, Serial Range: -C6725

1шт.

W/Equip. 752 Eletrically controlled Battery Isolator

1шт.

15

87305174

ELECTRIC CABLE,1170mm L

, Serial Range: -C5958

1шт.

W/Equip. 753 Mechanically controlled Battery Isolator

1шт.

15

84249328

ELECTRIC CABLE

, Start Serial: D6725

1шт.

W/Equip. 752 Eletrically controlled Battery Isolator

1шт.

16

87668898

FLEXIBLE SHEATH

L=400mm

1шт.
