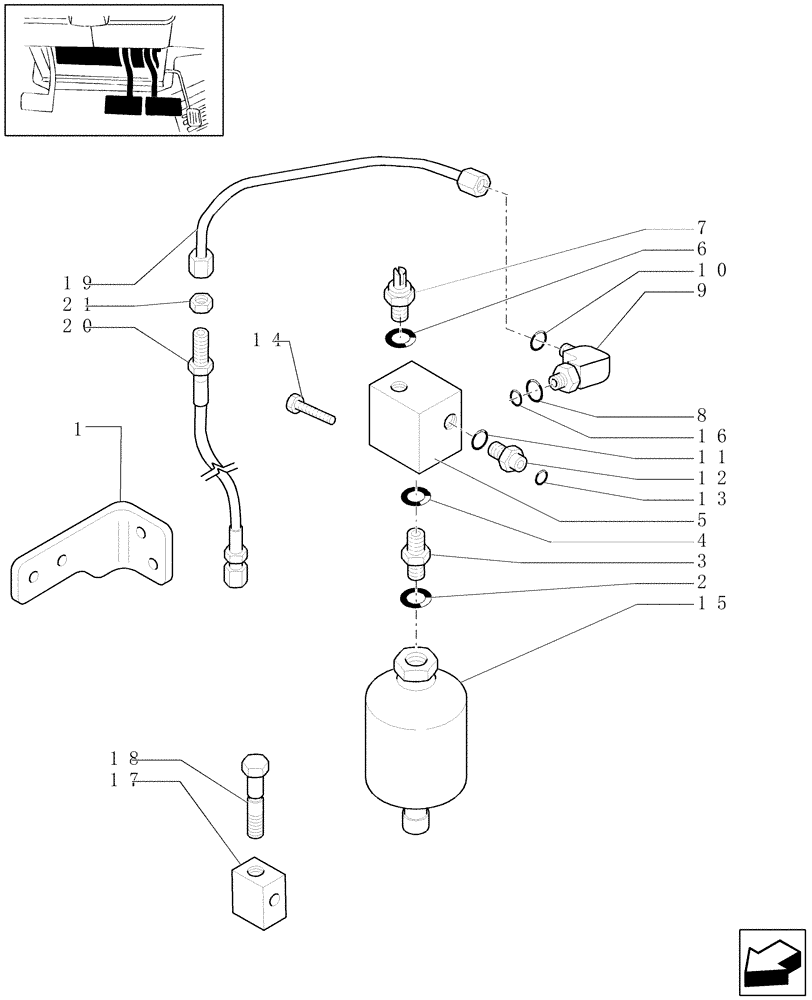

Запчасти Case IH PUMA 195 (1.65.3[02]) - OIL BRAKES TANK (05) - REAR AXLE

1

5199472

SUPPORT

1шт.

2

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

3

5186462

HYD CONNECTOR,M18 x 1.5 x 43.5mm

1шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

5

5199762

BLOCK

Includes Ref. 16

1шт.

6

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

3шт.

7

82033989

SWITCH ASSY

Pressure, Trailer Brake

1шт.

8

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

9

47124033

ELBOW

Includes Ref. 8, 10

1шт.

10

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

12

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

Includes Ref. 11, 13

1шт.

13

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

14

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

15

5195043

ACCUMULATOR,0.75L

1шт.

16

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

17

5198570

BLOCK

1шт.

18

5198569

BANJO BOLT,M12 x 1.5 x 44mm

1шт.

19

47127102

TUBE

1шт.

20

82031949

FLEXIBLE HOSE,10mm ID x 655mm L

1шт.

21

47123076

NUT

2шт.
