Запчасти Case IH PUMA 195 (1.40.0/12) - 4WD FRONT AXLE - HYDRAULIC STEERING CYLINDER (04) - FRONT AXLE & STEERING

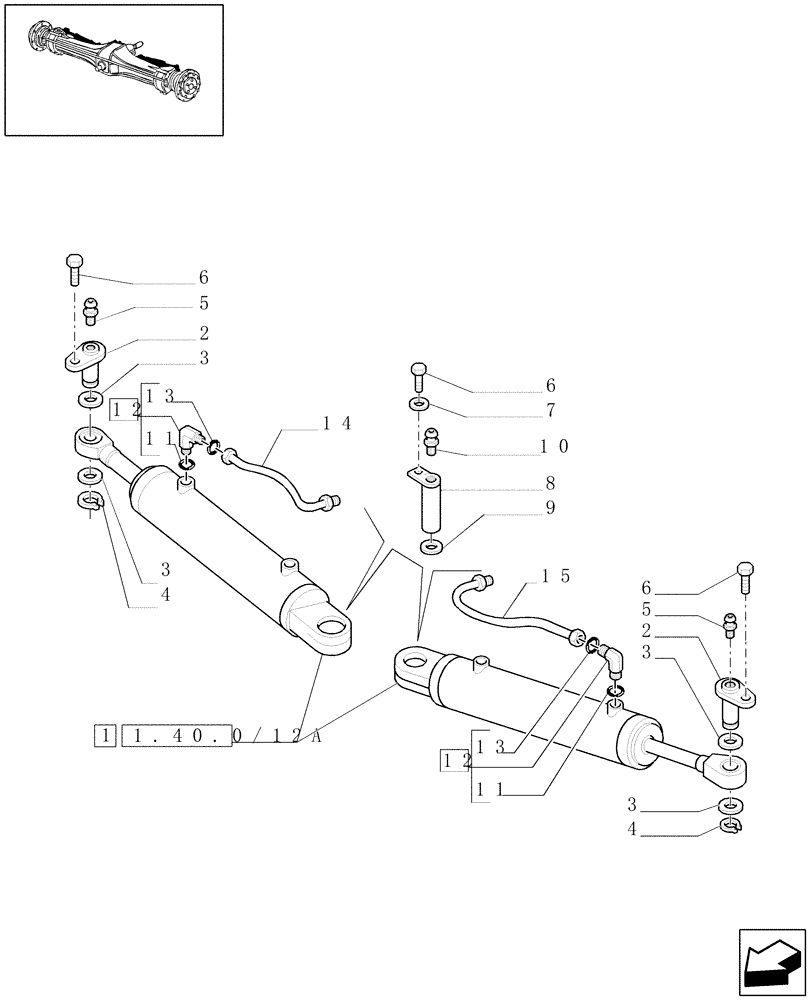

Схема запчастей Case IH PUMA 195 - (1.40.0/12) - 4WD FRONT AXLE - HYDRAULIC STEERING CYLINDER (04) - FRONT AXLE & STEERING
3
10
13
6
11
11
12
14
6
3
13
6
12
3
2
4
1.40.0/12a
2
1
8
4
15
7
5
5
3
9

Артикул

Название

Примечание

Количество

1

5198883

STEERING CYLINDER,Double Acting, 25mm Rod, 232.5mm Stroke

2шт.

2

5171707

PIN,24.97mm OD x 91mm L

2шт.

3

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.

4

11067376

SNAP RING,M25, Ext

2шт.

5

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

6

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

1шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

5198013

PIN,24.97mm OD x 100mm L

2шт.

9

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

10

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

11

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

12

47127165

90 ELBOW

2шт.

13

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

14

87592820

TUBE,10 mm OD x 210, 65 mm L

RH, Serial Range: -C5867

1шт.

14

87648149

HYD TUBE,255, 77 mm L

RH, Serial Range: D5867-C6461

1шт.

14

84233156

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

RH, Start Serial: D6461

1шт.

15

87592814

TUBE,10 mm OD x 210, 31 mm L

LH, Serial Range: -C5867

1шт.

15

87648141

HYD TUBE

LH, Serial Range: D5867-C6461

1шт.

15

84233089

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

LH, Start Serial: D6461

1шт.

Выбрано товаров: 20
