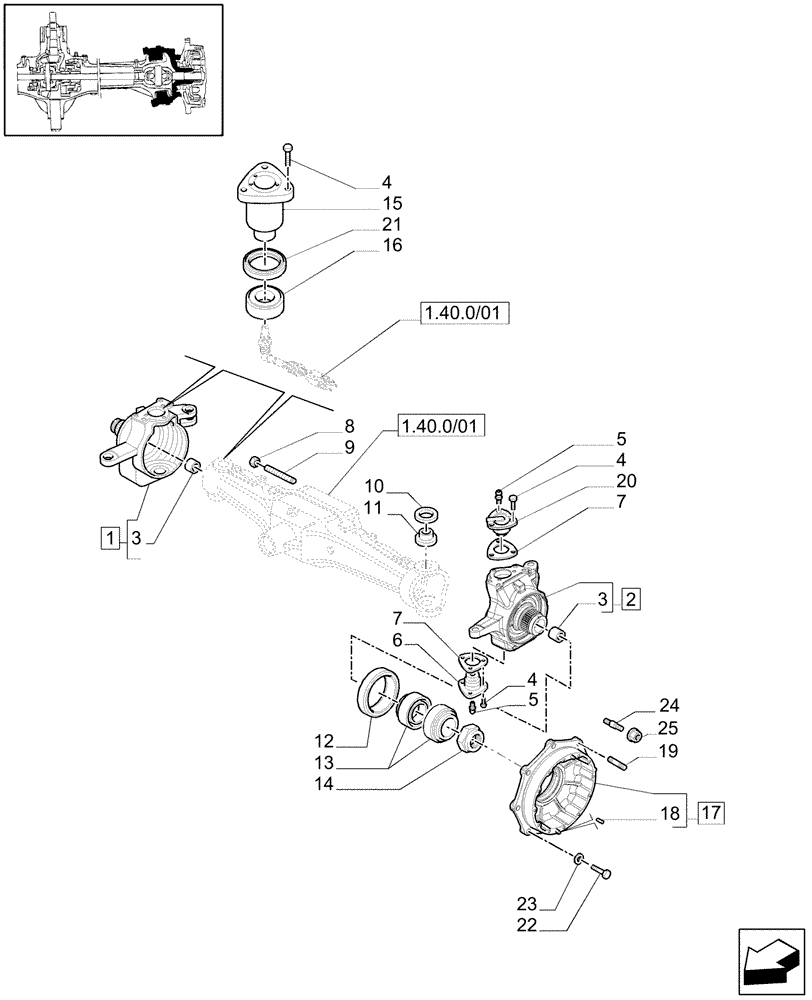

Запчасти Case IH PUMA 195 (1.40.0/02) - 4WD FRONT AXLE - STEERING KNUCKLES & HUBS (04) - FRONT AXLE & STEERING

1

87345382

KNUCKLE,RH

RH, Serial Range: -C6353

1шт.

1

84188828

KNUCKLE,RH

RH, Start Serial: D6353

1шт.

2

87345376

STUB AXLE/STEERING S,LH

LH, Serial Range: -C6353

1шт.

2

84188825

KNUCKLE,LH

LH, Start Serial: D6353

1шт.

3

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

2шт.

4

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

5

13407211

LUBE NIPPLE,M10 x 1

3шт.

6

87382384

BALL STUD

BALL PIN

2шт.

7

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

1шт.

7

5137115

SHIM,0.15mm Thk

1шт.

7

5137116

SHIM,70.5mm ID x 115mm OD x 0.2mm Thk

.20 mm Thk

1шт.

7

5137117

SHIM,70.5mm ID x 115mm OD x 0.25mm Thk

.25 mm Thk

1шт.

7

5137118

SHIM,70.5mm ID x 115mm OD x 0.3mm Thk

.30 mm Thk

1шт.

8

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

9

87751874

ADJUSTMENT SCREW,M18 x 120mm, Cl 10.9

2шт.

10

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

4шт.

11

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

3шт.

12

5178141

SEAL

190 x 220 x 14.5-18, Serial Range: -C6353

2шт.

12

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

190 x 220 x 15-17, Start Serial: D6353

2шт.

13

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

109.538x158.750x23.02

4шт.

14

5141692

NUT,M90 x 2

2 M90 x 2

2шт.

15

87345372

BALL STUD

BALL PIN

1шт.

16

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

80MM ID

1шт.

17

87345404

HUB

, Serial Range: -C6353

2шт.

17

87543151

HUB

, Start Serial: D6353

2шт.

18

4985063

DOWEL,12mm OD x 20mm L

4шт.

19

87330096

STUD

17x32x5, Serial Range: -C5831

8шт.

20

87382381

BALL STUD

BALL PIN

1шт.

21

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

1шт.

22

10790524

NUT,M16 x 1.5

M16x1.5, Serial Range: -C5831

16шт.

23

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

, Serial Range: -C5831

16шт.

24

87618916

STUD

, Start Serial: D5831

16шт.

25

87678013

NUT,M16 x 1.5

M16 x 1.5

16шт.
