Запчасти Case IH PUMA 195 (1.33.3[01]) - START HYDRAULIC CLUTCH (4WD) (04) - FRONT AXLE & STEERING

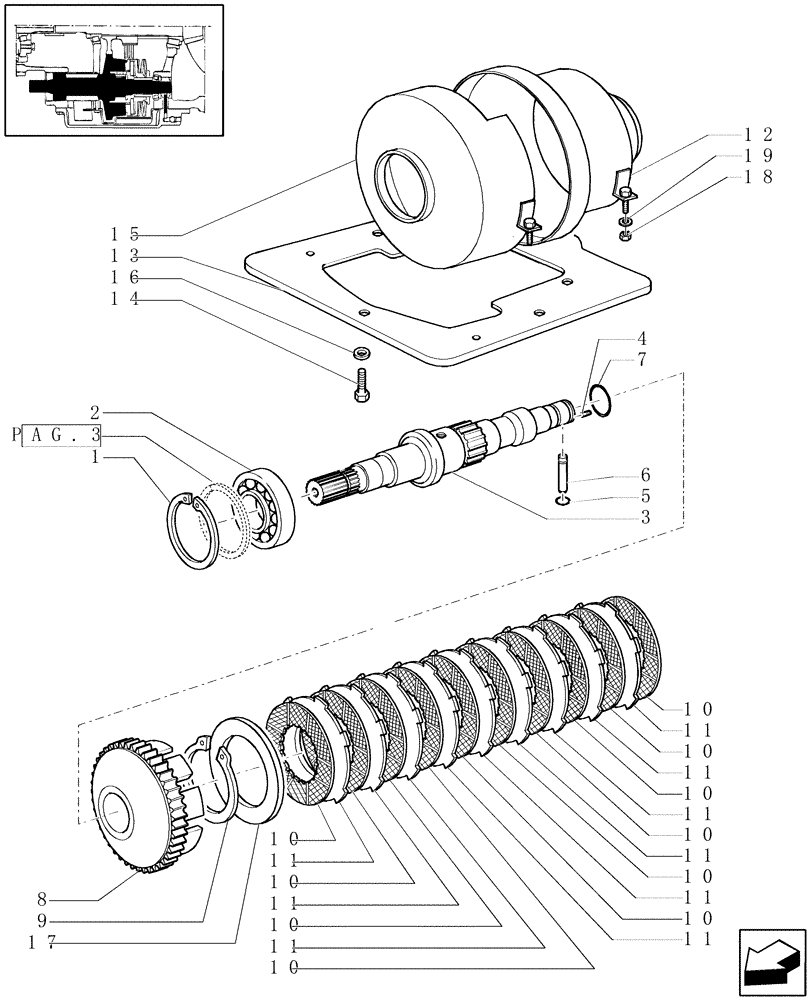

Схема запчастей Case IH PUMA 195 - (1.33.3[01]) - START HYDRAULIC CLUTCH (4WD) (04) - FRONT AXLE & STEERING
14
10
17
pag.3
10
10
10
10
10
9
11
5
11
2
11
11
19
10
7
11
15
11
10
11
13
1
4
10
12
10
8
3
11
11
16
6
18

Артикул

Название

Примечание

Количество

1

11061976

SNAP RING,M80, Int

1шт.

2

26799960

TAPERED BEARING,40mm ID x 80mm OD x 19.75mm W

1шт.

3

5195111

SHAFT

Includes Ref. 4

1шт.

4

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

5

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

6

14516210

DOWEL,M7 x 45

1шт.

7

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

8

5164773

GEAR

Driven, 4WD, Z=57, Serial Range: -Z7BH02153

1шт.

Only For PUMA 165, PUMA 180, PUMA 195 Models

1шт.

8

87699456

GEAR,60T

Driven, 4WD, Z=60, Start Serial: Z7BH02154

1шт.

Only For PUMA 165, PUMA 180, PUMA 195 Models

1шт.

9

5139462

SNAP RING,3mm Thk

1шт.

10

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

Square Pattern

10шт.

11

5163840

DRIVE PLATE

9шт.

12

47131969

SHIELD

1шт.

Only For PUMA 165, PUMA 180, PUMA 195 Models

1шт.

12

87331606

SHIELD

1шт.

Only For PUMA 210 Models

1шт.

13

5195444

SHIELD

1шт.

Only For PUMA 165, PUMA 180, PUMA 195 Models

1шт.

13

87331584

SHIELD

1шт.

Only For PUMA 210 Models

1шт.

14

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

15

47131970

SHIELD

1шт.

Only For PUMA 165, PUMA 180, PUMA 195 Models

1шт.

15

87331605

SHIELD

1шт.

Only For PUMA 210 Models

1шт.

16

11193870

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

17

47126552

CLUTCH PLATE

1шт.

18

10720124

NUT,Hex, M6 x 1

4шт.

19

11197770

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

Выбрано товаров: 31
