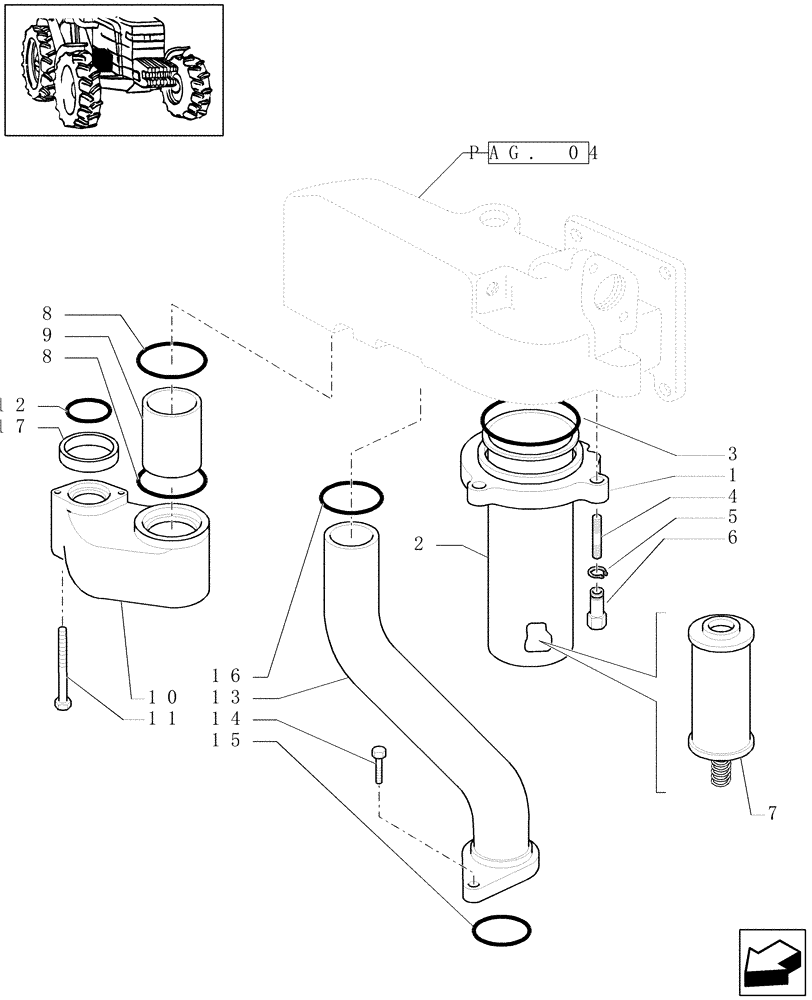

Запчасти Case IH PUMA 195 (1.32.8/01[05]) - (VAR.004-481) 150 L/MIN PUMP CCLS W/EDC - PUMPS FOR HYDRAULIC SYSTEM AND LIFT (03) - TRANSMISSION

1

5196502

RING

1шт.

2

5196564

HOUSING

1шт.

3

14466380

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

1шт.

4

13517621

STUD

M8X12

3шт.

5

13397776

SNAP RING,M16, Int

3шт.

6

5196481

NUT,M8 x 1.25

3шт.

7

84476646

HYDRAULIC OIL FILTER

1шт.

8

14464580

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.

9

5196560

TUBE

1шт.

10

5198577

MANIFOLD

Includes Ref. 17

1шт.

11

16045024

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

12

14464280

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

13

47128256

SUCTION PIPE

1шт.

14

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

15

76046537

SEAL,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

1шт.

16

14471580

O-RING,0.21" Thk x 2.35" ID, -332, Cl 5, 75 Duro

1шт.

17

5198578

RING,42mm ID x 45mm OD x 7.8mm Thk

1шт.
