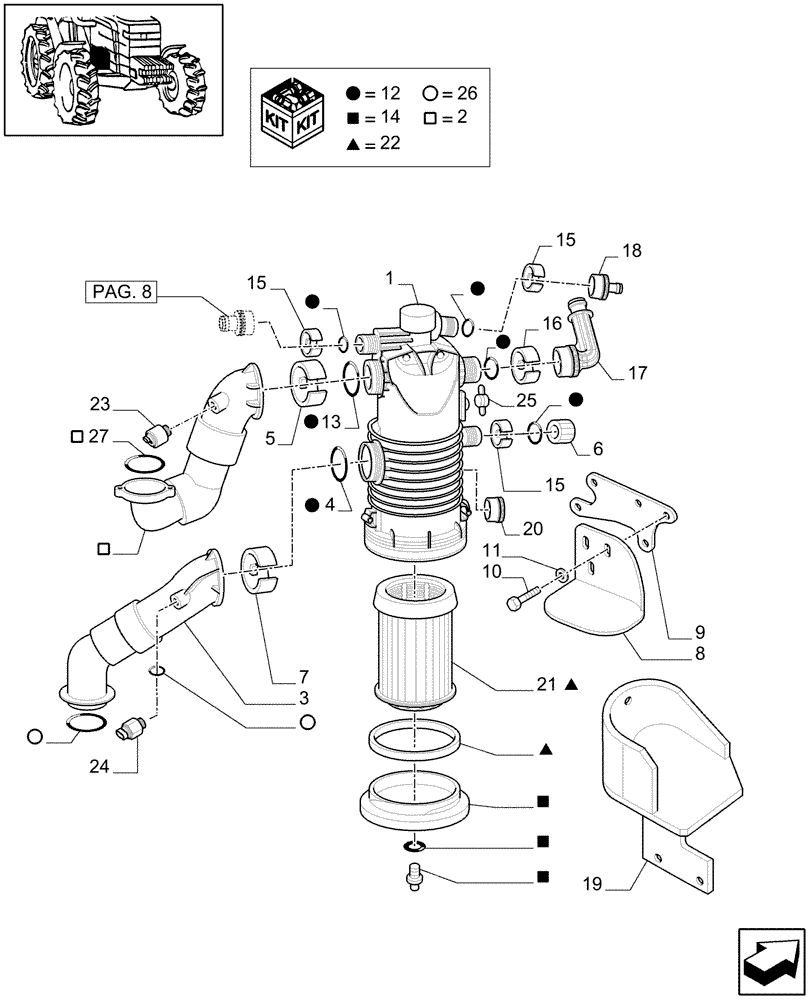

Запчасти Case IH PUMA 195 (1.32.8[09]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - OIL FILTER, PIPES AND SUPPORT - D6002 (03) - TRANSMISSION

1

87313049

FILTER ASSY

1шт.

2

87473621

SUCTION PIPE

Upper Left, Serial Range: -Z9BH0647

1шт.

2

87395841

TUBE

, Start Serial: Z9BH0648

1шт.

3

87473619

TUBE

1шт.

4

87381699

O-RING,63.50mm ID x 3.53mm

1шт.

5

87381696

SNAP RING,8mm Thk, Ext

1шт.

6

87330798

PLUG,46mm ID

1шт.

7

87381695

CIRCLIP,8mm Thk

1шт.

8

87541317

COVER

1шт.

9

87519190

SUPPORT

1шт.

10

15972424

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

3шт.

11

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

12

87705156

SEAL KIT

1шт.

13

87381702

O-RING,53.5mm ID x 2.387mm OD x 3.53mm

1шт.

14

87705159

FILTER COVER

1шт.

15

87330793

STOP DEVICE

3шт.

16

87330755

STOP DEVICE

1шт.

17

87324688

ELBOW,90 Deg, 32.9mm - 27mm ID

1шт.

18

87330801

HYD CONNECTOR,21mm D x 12.5mm D

1шт.

19

87758486

SHIELD

1шт.

20

87381694

HYD CONNECTOR,21mm D x 22mm D

1шт.

21

87395844

ELEMENT

1шт.

22

47617638

FILTER

HYDRAULIC FILTER

1шт.

23

82025340

RESTRICTION SWITCH

1шт.

24

87564694

PROBE

1шт.

25

87705160

ARRESTER

1шт.

26

87705158

GASKET KIT

1шт.

27

87705157

SEAL

1шт.
