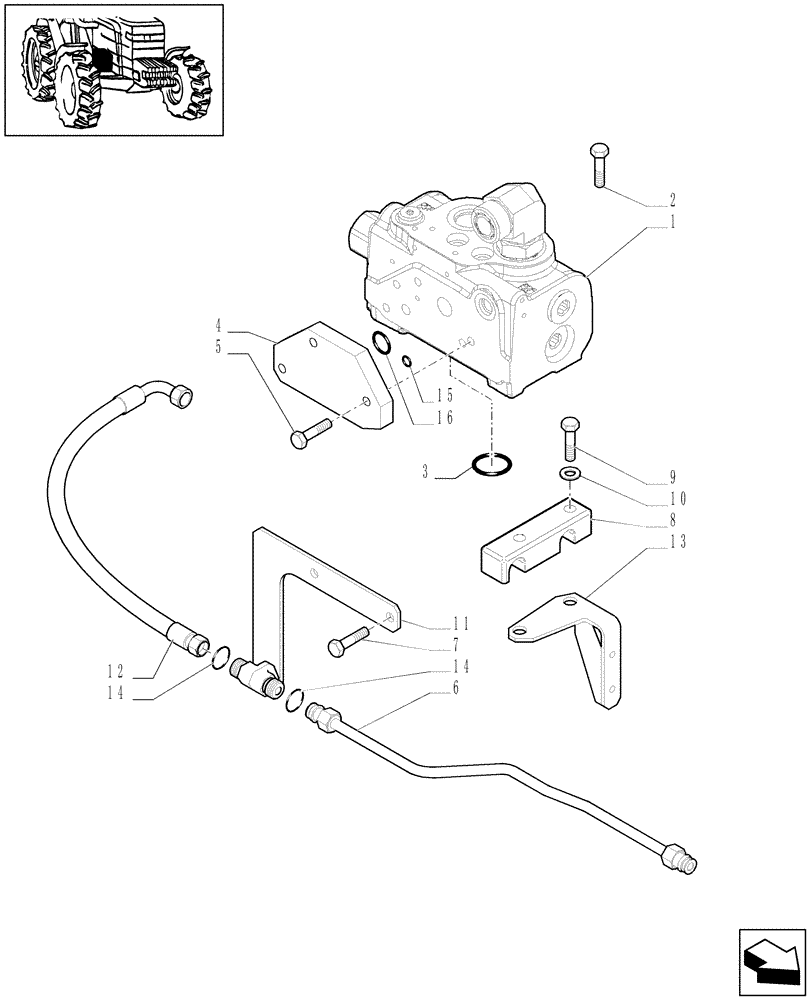

Запчасти Case IH PUMA 195 (1.32.8[07]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - PRIORITY VALVE AND PIPES (03) - TRANSMISSION

1

87383999

HYDRAULIC VALVE

1шт.

2

14421431

HEX SOC SCREW,M10 x 1.5 x 100mm, Cl 10.9

4шт.

3

14457981

O-RING,1.049" ID x 0.103" Width

1шт.

4

87316882

COVER

1шт.

5

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

6

87396880

PIPE

, Serial Range: -Z8BH01742

1шт.

Full Powershift W/EHR & ISO BUS

1шт.

6

87708352

PIPE

, Start Serial: Z8BH01743

1шт.

Full Powershift W/EHR & ISO BUS

1шт.

7

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

Full Powershift W/EHR & ISO BUS

1шт.

8

87309856

CLAMP BRACKET

1шт.

Full Powershift W/EHR & ISO BUS

1шт.

9

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

2шт.

Full Powershift W/EHR & ISO BUS

1шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

Full Powershift W/EHR & ISO BUS

1шт.

11

82037429

BRACKET

1шт.

Full Powershift W/EHR & ISO BUS

1шт.

12

82038870

HOSE,9.53mm ID x 620mm L, SAE 100R16

1шт.

Full Powershift W/EHR & ISO BUS

1шт.

13

82037221

BRACKET

1шт.

Full Powershift W/EHR & ISO BUS

1шт.

14

81845038

O-RING,0.5" ID x 0.07" Thk

2шт.

15

14458081

O-RING,1.112" ID x 0.103" Width

1шт.

16

86637770

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

1шт.
