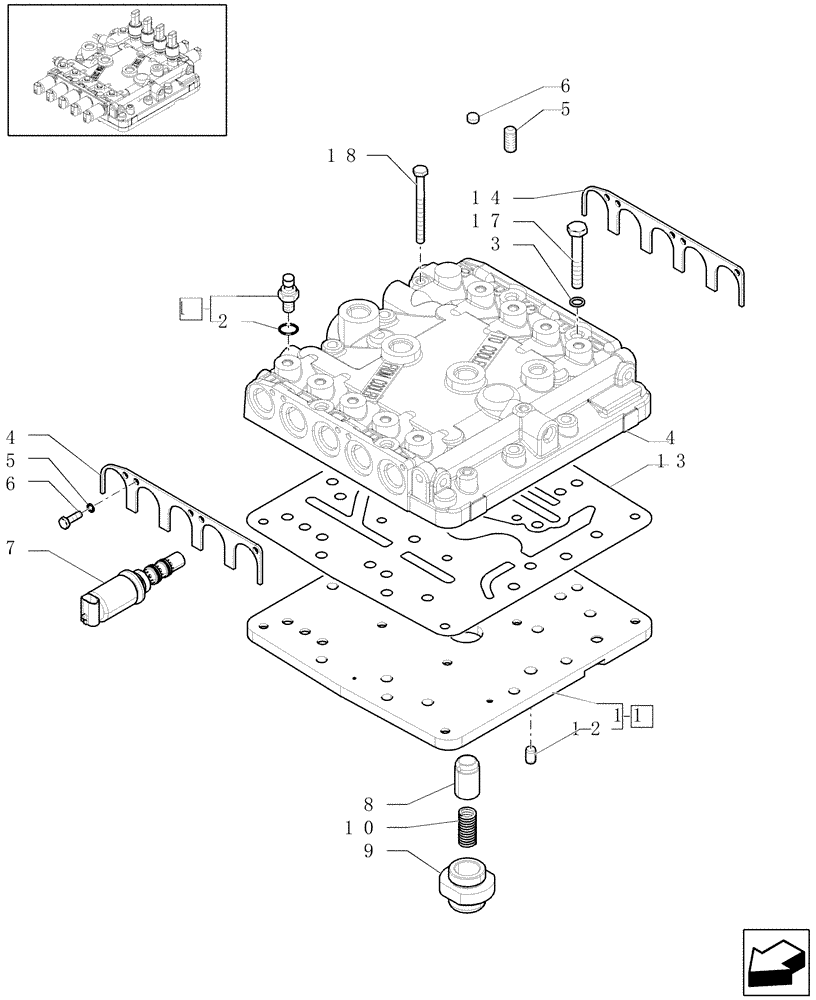

Запчасти Case IH PUMA 195 (1.32.2/01[01]) - (VAR.147-571) FULL POWER SHIFT TRANS. 19X6 - CENTRAL GEAR REDUCTION CONTROLS (03) - TRANSMISSION

1

5185423

COUPLING

Incl. 2

5шт.

2

14437785

O-RING,11.3mm ID x 2.4mm

5шт.

3

14437685

O-RING,9.30mm ID x 2.40mm

4шт.

4

87315898

TOP COVER

Incl. 5, 6

1шт.

5

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

4шт.

6

14328401

PLUG,M14, Tapered

1шт.

7

5195038

ELECTRO-VALVE

, Serial Range: -C5599

11шт.

7

87624294

SOLENOID

, Start Serial: D5599

10шт.

8

5187494

BY-PASS VALVE

1шт.

9

5183477

BODY

1шт.

10

5176720

SPRING,Compression, 17mm OD x 50mm L

1шт.

11

47126239

PLATE

Incl. 12, Serial Range: -C5486

1шт.

11

87547940

PLATE

Incl. 12, Start Serial: D5486

1шт.

12

5153109

DOWEL,10mm OD x 15mm L

1шт.

13

5194959

GASKET,0.5mm Thk

1шт.

14

47126217

PLATE

2шт.

15

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

10шт.

16

14433121

HEX SOC SCREW,M6 x18mm, Cl 8.8, Full Thd

10шт.

17

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

4шт.

18

47126246

BOLT,Hex, M10 x 1.25 x 78mm, Spcl

4шт.
