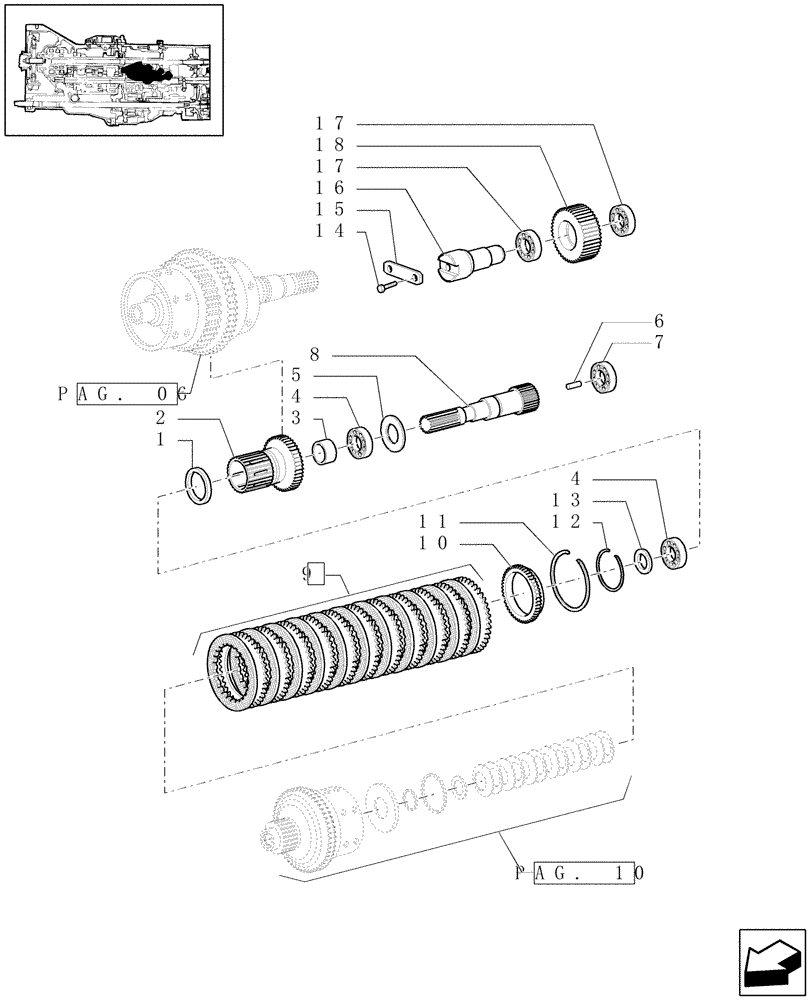

Запчасти Case IH PUMA 195 (1.32.1[09]) - CENTRAL REDUCTION GEARS (03) - TRANSMISSION

1

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

2

5185166

GEAR,31T, 52T

1шт.

3

5185165

SPACER,55.1mm ID x 64mm OD x 28mm L

1шт.

4

28042510

BALL BEARING,55mm x 90mm x 18mm

2шт.

5

5183706

THRUST WASHER,55.1mm ID x 89mm OD x 1mm Thk

1шт.

6

5183120

SCREW,M14 x 1.5 x 12mm, Cl 12.9

1шт.

7

23521100

BALL BEARING,45mm ID x 120mm OD x 29mm W

1шт.

8

5183134

SHAFT

1шт.

9

5172232

KIT

, Serial Range: -C5603

1шт.

9

87530794

CLUTCH PACK

Clutch Plates, Start Serial: D5603

1шт.

10

5179115

DISC,117.02mm ID x 154.35mm OD x 12.5mm Thk

1шт.

11

5162251

CIRCLIP,142.5mm ID

1шт.

12

5179124

CIRCLIP

1шт.

13

5187838

SPACER,46.1mm ID x 68mm OD x 5.5mm L

1шт.

14

14238021

LOCK BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

15

5179133

PLATE

1шт.

16

5172246

PIN,39.98mm OD x 115mm L

1шт.

17

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

2шт.

18

5179293

GEAR,Z39

1шт.
