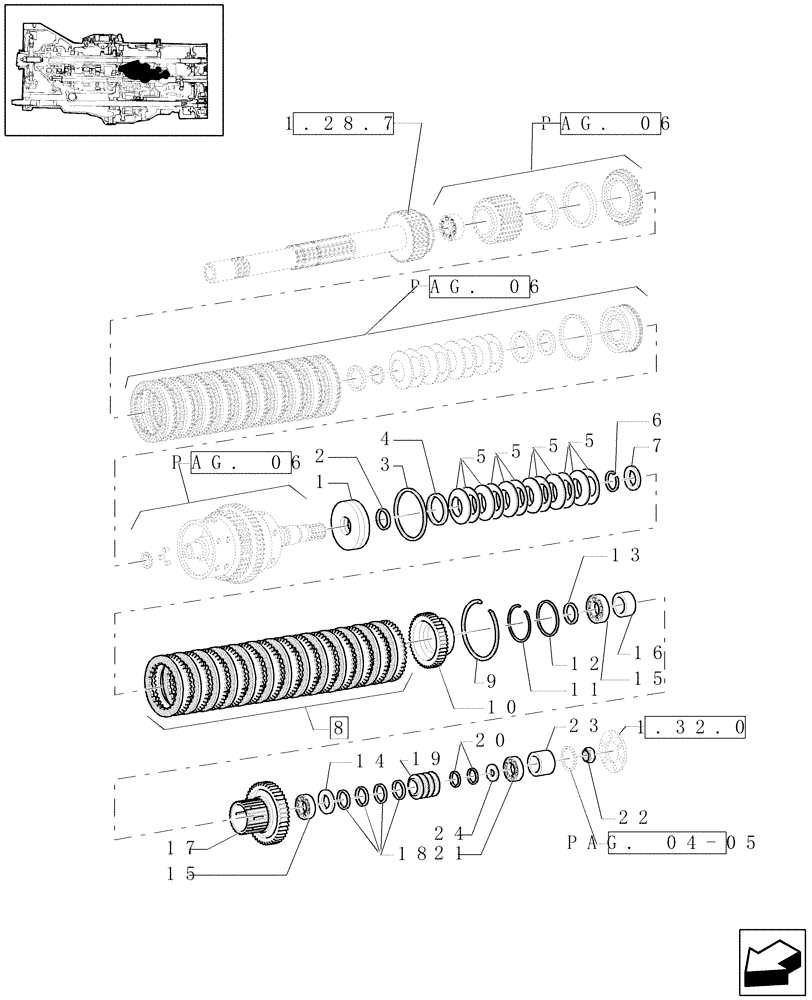

Запчасти Case IH PUMA 195 (1.32.1[07]) - CENTRAL REDUCTION GEARS (03) - TRANSMISSION

1

5187424

PISTON

1шт.

2

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

3

5172302

GASKET,140.55mm ID x 148mm OD x 3.2mm Thk

1шт.

4

5164926

RING

, Serial Range: -C5486

1шт.

4

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

, Start Serial: D5486

1шт.

5

5177755

SPRING

, Serial Range: -C5486

12шт.

5

87547948

BELLEVILLE SPRING,60.8mm ID x 95mm OD x 2.3mm Thk

, Start Serial: D5486

12шт.

6

5175981

CIRCLIP,1.5mm Thk

1шт.

7

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

8

5199903

KIT

1шт.

9

5162251

CIRCLIP,142.5mm ID

1шт.

10

5179115

DISC,117.02mm ID x 154.35mm OD x 12.5mm Thk

1шт.

11

5179124

CIRCLIP

1шт.

12

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

13

5183118

SPACER,55.1mm ID x 66mm OD x 2.5mm L

1шт.

14

5183706

THRUST WASHER,55.1mm ID x 89mm OD x 1mm Thk

1шт.

15

28042510

BALL BEARING,55mm x 90mm x 18mm

2шт.

16

5179172

SHIM,M55.2 x 62 x 10.500

1шт.

17

5196076

GEAR

1шт.

18

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

SEALRING

4шт.

19

5185208

PISTON,89.35mm Bore, 55mm Rod, 53.5mm W

1шт.

20

14455080

O-RING,50.52mm ID x 1.78mm

2шт.

21

5187264

TAPERED BEARING,55 mm ID x 90 mm OD x 23 mm

1шт.

22

5172206

NUT,Hex, M50, 1.5mm Pitch, 20mm Thk, Hdn

1шт.

23

5183720

SPACER,78mm ID x 89.8mm OD x 19.25mm L

1шт.

24

5161811

BELLEVILLE WASHER,55.2mm ID x 72mm OD x 3.75mm Thk

1шт.
