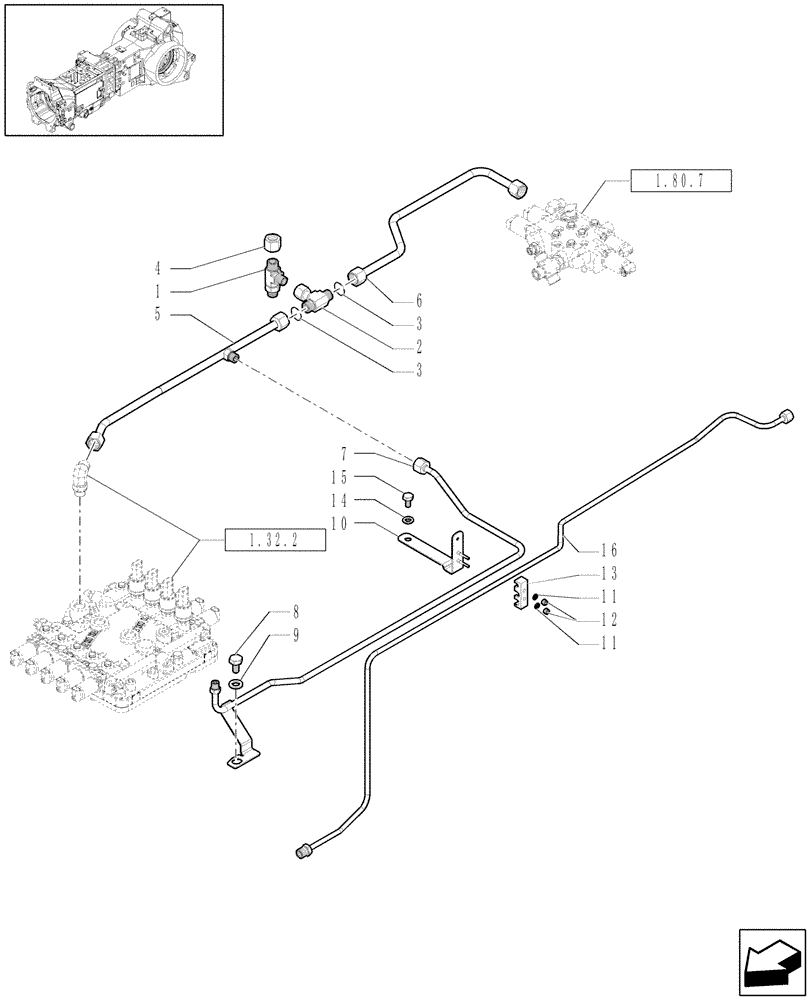

Запчасти Case IH PUMA 195 (1.29.6[02]) - HYDRAULIC GEARBOX CONTROL - PIPES (03) - TRANSMISSION

1

87328821

HYD CONNECTOR

1шт.

2

5197110

TEE,1"-14 UNS

Includes Ref. 3

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

4

83987627

CAP,1-14UN-2A

1шт.

5

87316320

HYD TUBE

Supply Low Pressure, Serial Range: Oil-Transmission

1шт.

6

87316330

HYD TUBE

Inlet Valve Manifold

1шт.

7

87316322

HYD TUBE

1шт.

8

15219521

BOLT,Hex, M16 x 25mm, Cl 8.8, Full Thd

1шт.

9

10520205

WASHER,Flat, 16.40mm ID x 28.00mm OD x 3.00mm, CST, ZND

1шт.

10

87526108

BRACKET

1шт.

11

12646605

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

2шт.

12

9706755

NUT,M6, Cl 8

2шт.

13

87318812

CLAMP BRACKET

1шт.

14

10520005

WASHER,12.2mm ID x 22mm OD x 3mm Thk

1шт.

15

16207524

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

87396171

PIPE

4WD, Serial Range: -C5848

1шт.

Full Powershift W/EHR & ISO BUS

1шт.

16

87726931

PIPE

, Start Serial: D5848

1шт.

Full Powershift W/EHR & ISO BUS

1шт.
