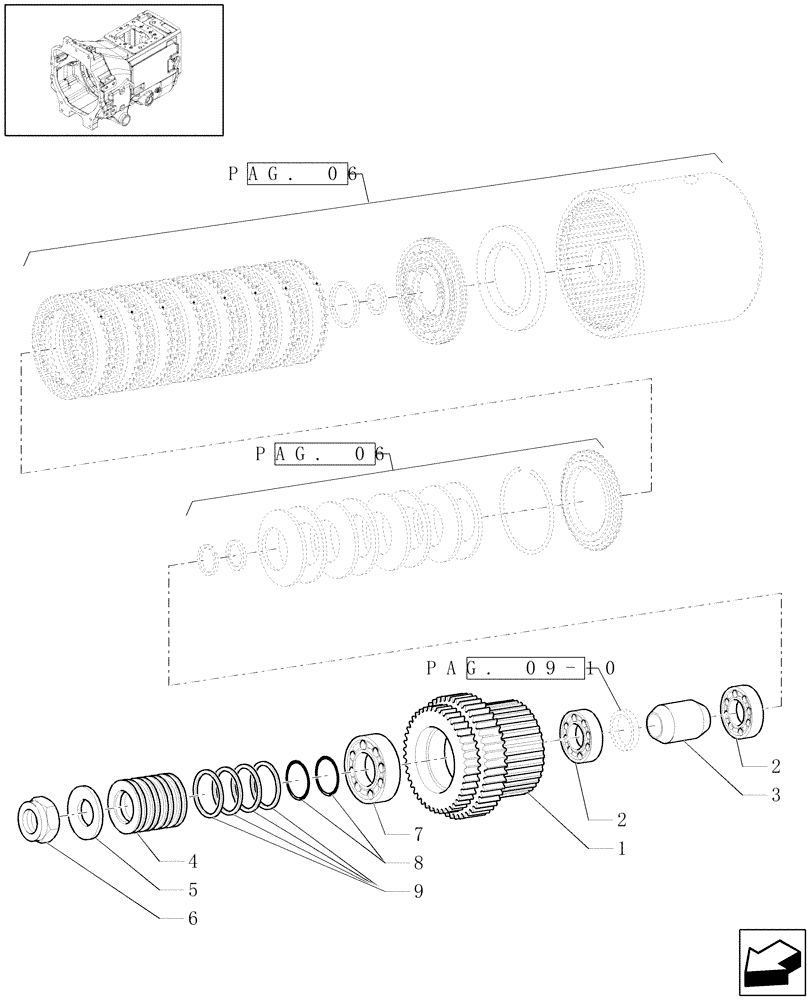

Запчасти Case IH PUMA 195 (1.28.7[07]) - SPEED GEARS AND CLUTCHES - GEARS (03) - TRANSMISSION

1

5183143

GEAR

I-II Speed, Z=52/50, Serial Range: -Z7BH02153

1шт.

1

87553309

PINION

I-II Speed, Z=50/48, Start Serial: Z7BH02154

1шт.

2

24903820

TAPERED BEARING,45 mm ID x 75 mm OD x 20 mm

2шт.

3

5183113

SPACER

1шт.

4

5187957

MANIFOLD

1шт.

5

5166037

SPRING,Belleville, 45.25mm OD x 4.5mm Thk

1шт.

6

5147930

RING NUT,M45 x 1.5

1шт.

7

5150900

BEARING, ROLLER, CYL,45mm ID x 85mm OD x 19mm W

1шт.

8

14454781

O-RING,0.07" Thk x 1.614" ID, -30, Cl 7, 75 Duro

2шт.

9

83911795

SEAL,Split, 70.76mm ID x 76.2mm OD x 2.13mm Thk

4шт.
