Запчасти Case IH PUMA 195 (1.28.7[06]) - SPEED GEARS AND CLUTCHES - "C" AND "D" CLUTCHES (03) - TRANSMISSION

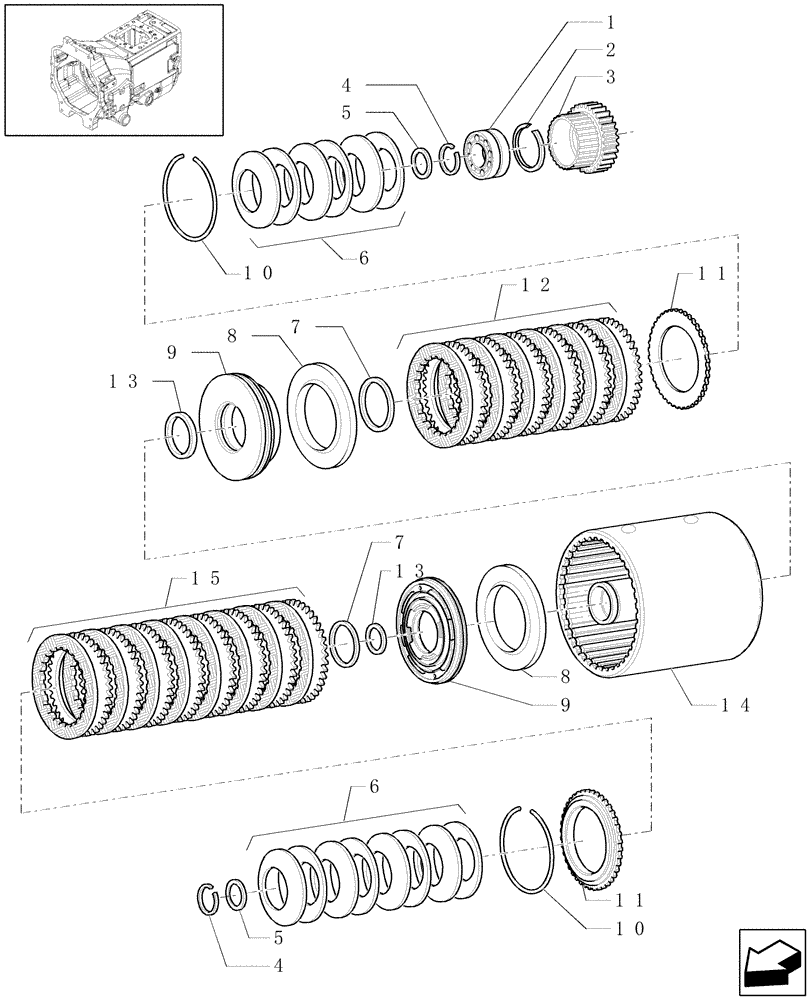

Схема запчастей Case IH PUMA 195 - (1.28.7[06]) - SPEED GEARS AND CLUTCHES - "C" AND "D" CLUTCHES (03) - TRANSMISSION
9
1
3
6
6
15
4
7
10
5
7
13
8
13
2
5
12
8
14
11
4
10
11
9

Артикул

Название

Примечание

Количество

1

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

1шт.

2

5162623

CIRCLIP,80mm ID

1шт.

3

5183136

GEAR

III-IV Speed, Z=45, Serial Range: -Z7BH02153

1шт.

3

87553310

PINION

III-IV Speed, Z=43, Start Serial: Z7BH02154

1шт.

4

5175981

CIRCLIP,1.5mm Thk

2шт.

5

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

2шт.

6

5164927

SPRING

, Serial Range: -C5486

14шт.

6

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

, Start Serial: D5486

14шт.

7

5164926

RING

, Serial Range: -C5486

2шт.

7

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

, Start Serial: D5486

2шт.

8

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

2шт.

9

5187977

PISTON

, Serial Range: -C5486

2шт.

9

87547824

PISTON

, Start Serial: D5486

2шт.

10

47132782

SNAP RING,3mm Thk, Int

2шт.

11

47132780

THRUST PLATE,60T, 154.75mm OD

2шт.

12

5167875

KIT

Clutch Plates, Serial Range: -C5603

1шт.

12

87530788

CLUTCH PACK

Clutch Plates, Start Serial: D5603

1шт.

13

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

2шт.

14

47132827

CLUTCH HOUSING

1шт.

15

5165058

KIT

Clutch Plates, Serial Range: -C5603

1шт.

15

87530789

CLUTCH PACK

Clutch Plates, Start Serial: D5603

1шт.

Выбрано товаров: 21
