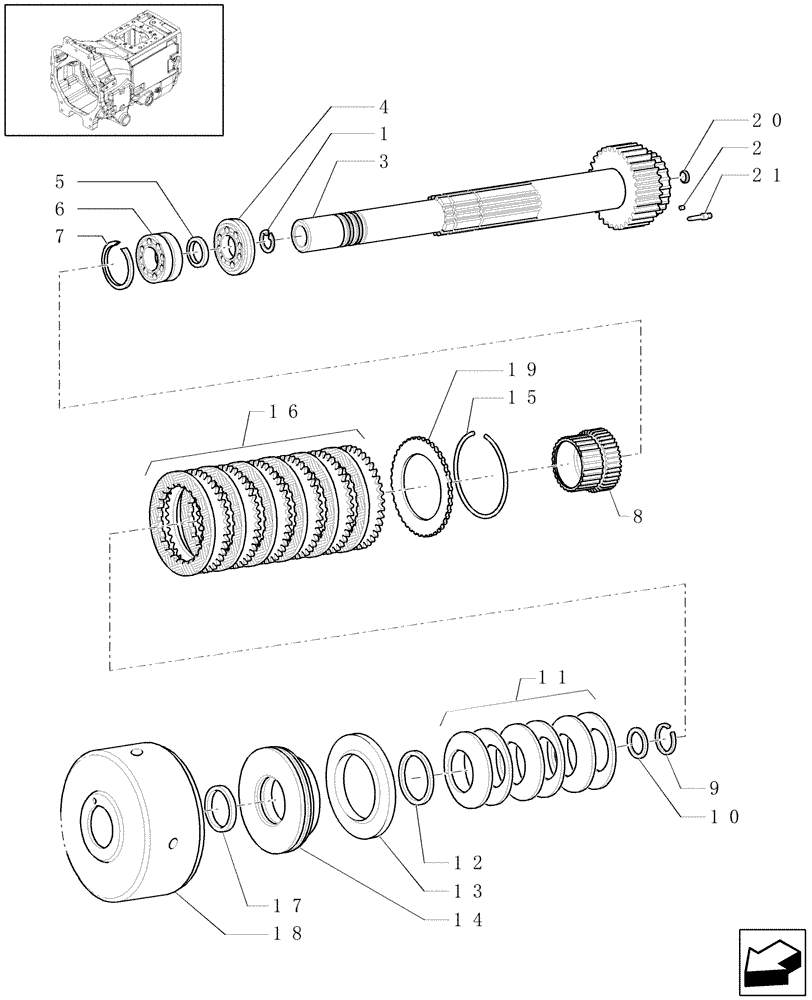

Запчасти Case IH PUMA 195 (1.28.7[05]) - SPEED GEARS AND CLUTCHES - DRIVEN SHAFT AND "E" CLUTCH - C6075 (03) - TRANSMISSION

1

11059076

SNAP RING,M32, Int

1шт.

2

5162260

PLUG,Round, 10.5mm OD

3шт.

3

5183138

SHAFT

Also order plug 5179204

1шт.

4

5138418

TAPERED BEARING,50mm ID x 110mm OD x 29.25mm W

1шт.

5

5162261

SPACER,50.1mm ID x 60mm OD x 4mm L

1шт.

6

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

1шт.

7

5162623

CIRCLIP,80mm ID

1шт.

8

5183151

GEAR

V-VI Speed, Z=42, Serial Range: -Z7BH02153

1шт.

For PUMA 165, PUMA 180, PUMA 195 Models

1шт.

8

87316199

GEAR

V-VI Speed, Z=36, Serial Range: -Z7BH02153

1шт.

For PUMA 210 Model

1шт.

8

87553312

PINION

V-VI Speed, Z=36, Start Serial: Z7BH02154

1шт.

9

5175981

CIRCLIP,1.5mm Thk

1шт.

10

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

11

5164927

SPRING

, Serial Range: -C5486

6шт.

11

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

, Start Serial: D5486

6шт.

12

5164926

RING

, Serial Range: -C5486

1шт.

12

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

, Start Serial: D5486

1шт.

13

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

1шт.

14

5187977

PISTON

, Serial Range: -C5486

1шт.

14

87547824

PISTON

, Start Serial: D5486

1шт.

15

47132782

SNAP RING,3mm Thk, Int

1шт.

16

5167875

KIT

, Serial Range: -C5603

1шт.

16

87530788

CLUTCH PACK

Clutch Plates, Start Serial: D5603

1шт.

17

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

18

47132801

HOUSING

1шт.

19

47132780

THRUST PLATE,60T, 154.75mm OD

1шт.

20

5179204

PLUG,20.27mm OD x 6.38mm W

1шт.

21

14536590

PLUG,10.00mm Dia x 19.80mm L

3шт.
